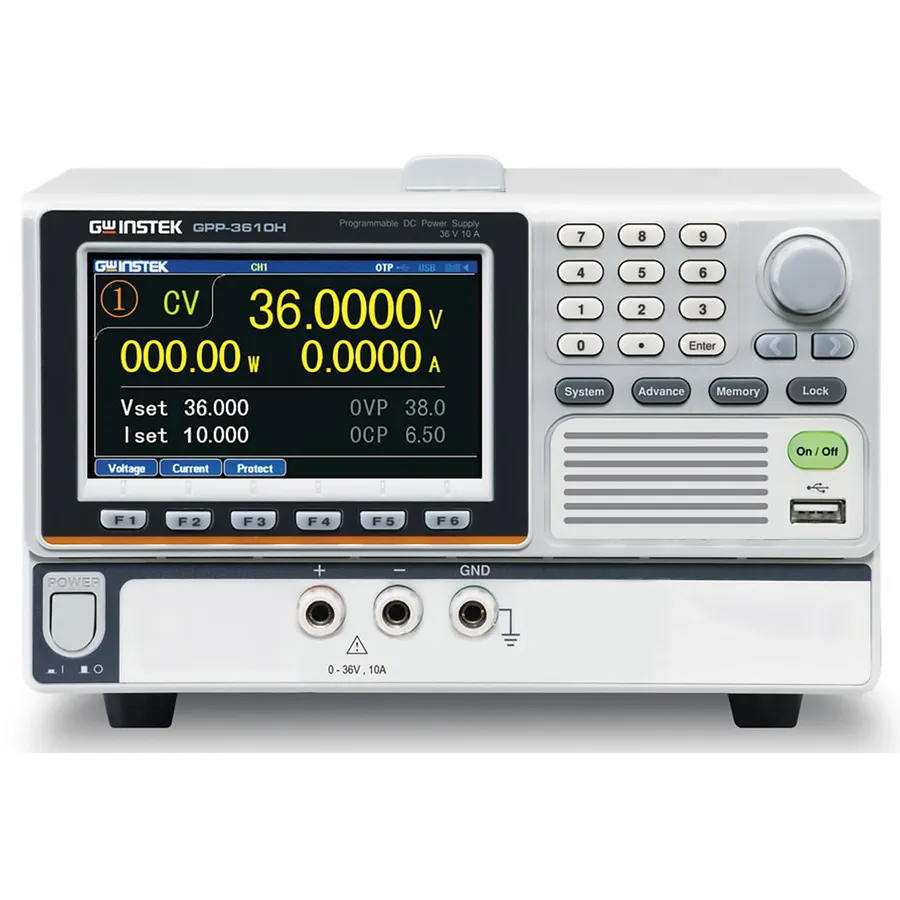

GW Instek GPP-3610H Programmable DC Power Supply

Overview

The GW Instek GPP-3610H is a 360W programmable DC power supply offering 36V/10A output with high programming resolution (1mV/0.2mA) and superior readback resolution (0.1mV/0.1mA). Featuring low ripple noise characteristics (≤1mVrms, 5Hz–1MHz) and fast output transient recovery (≤100µs), the GPP-3610H is designed for precision testing and measurement applications.

Key Features

• 4.3" TFT LCD Display with multiple display modes (channel settings, measurements, waveform)
• Programming Resolution: 1mV/0.2mA; Readback Resolution: 0.1mV/0.1mA
• Low ripple noise: ≤1mVrms (5Hz–1MHz), ≤2mArms
• Load function supporting CC (constant current), CV (constant voltage), and CR (constant resistance) modes up to 100W
• Sequential output function with 8 built-in template waveforms (Sine, Pulse, Ramp, Stair Up, Stair Dn, Stair UpDn, Exp Rise, Exp Fall)
• Output monitoring and protection (OVP, OCP, OPP, OTP) with hardware-based response
• Output recorder function—saves voltage/current data to internal memory as *.REC or *.CSV files
• Trigger In/Trigger Out for external device synchronization
• 10 sets of internal memory storage for output values, sequences, and delay settings
• Interfaces: Standard LAN, RS-232, USB; Optional GPIB

Applications

• Scientific research and experimental testing
• Electronic parts testing
• 3C electronic product testing
