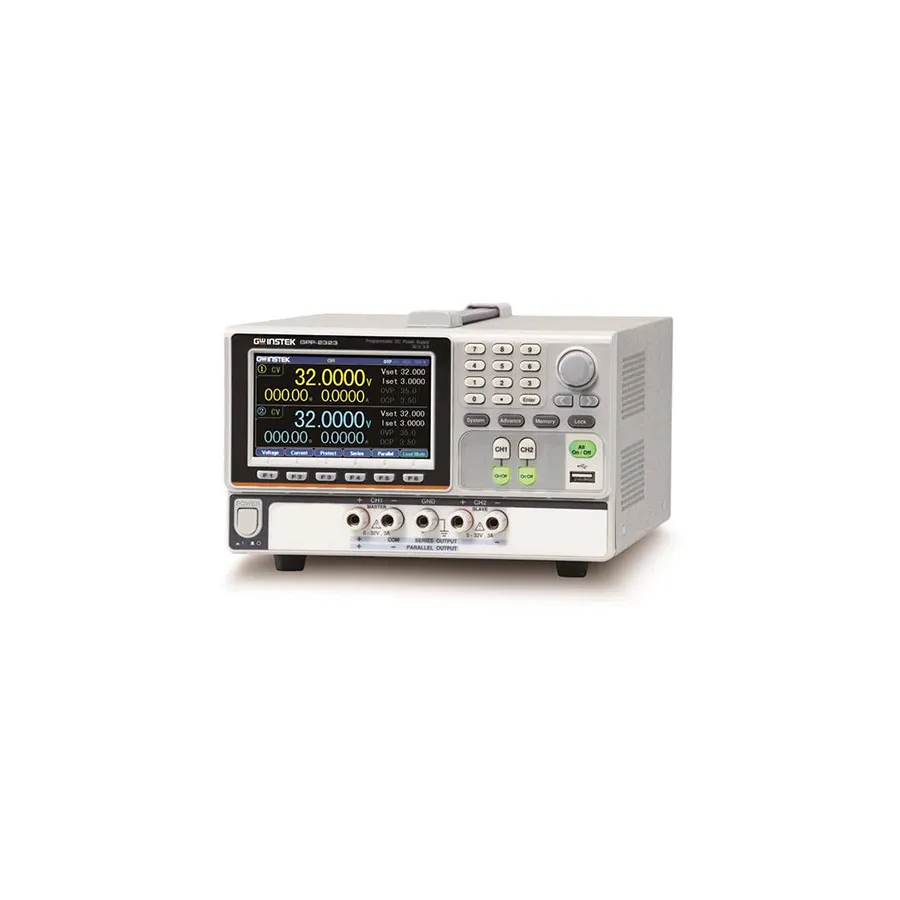

GW Instek GPP-2323 (LAN+GPIB) Programmable DC Power Supply

Overview

The GW Instek GPP-2323 is a dual-channel programmable DC power supply with independent output controls for each channel. Each channel delivers 0–32V and 0–3A with a combined maximum output power of 217W. Featuring high program resolution (1mV/0.1mA) and ultra-low ripple noise (≤350µVrms/≤2mArms), the GPP-2323 is designed for precision laboratory and industrial applications. The unit includes automatic series/parallel tracking without external wiring and full LAN/USB/GPIB interface support for remote control and data logging.

Key Features

• Dual independent channels: 0–32V, 0–3A each
• 4.3" TFT LCD display with multi-view modes (settings, measurements, waveforms)
• High resolution: 1mV/0.1mA setting, 0.1mV/0.1mA readback
• Low ripple noise: ≤350µVrms/≤2mArms
• Automatic series/parallel tracking without additional external wiring
• Fast transient response: ≤50µs recovery time
• Hardware-based protection: over-voltage, over-current, over-temperature
• Output monitoring and recording to internal memory (*.REC, *.CSV formats)
• Sequential output with 8 built-in template waveforms
• LAN, USB, GPIB, and RS-232 interfaces

Applications

• Multi-channel laboratory test systems
• Industrial power conditioning and control
• Research and development with series/parallel configurations
• Automated test equipment requiring dual independent outputs

Included Accessories

• Power cord
• User manual (CD)
• Quick start guide
