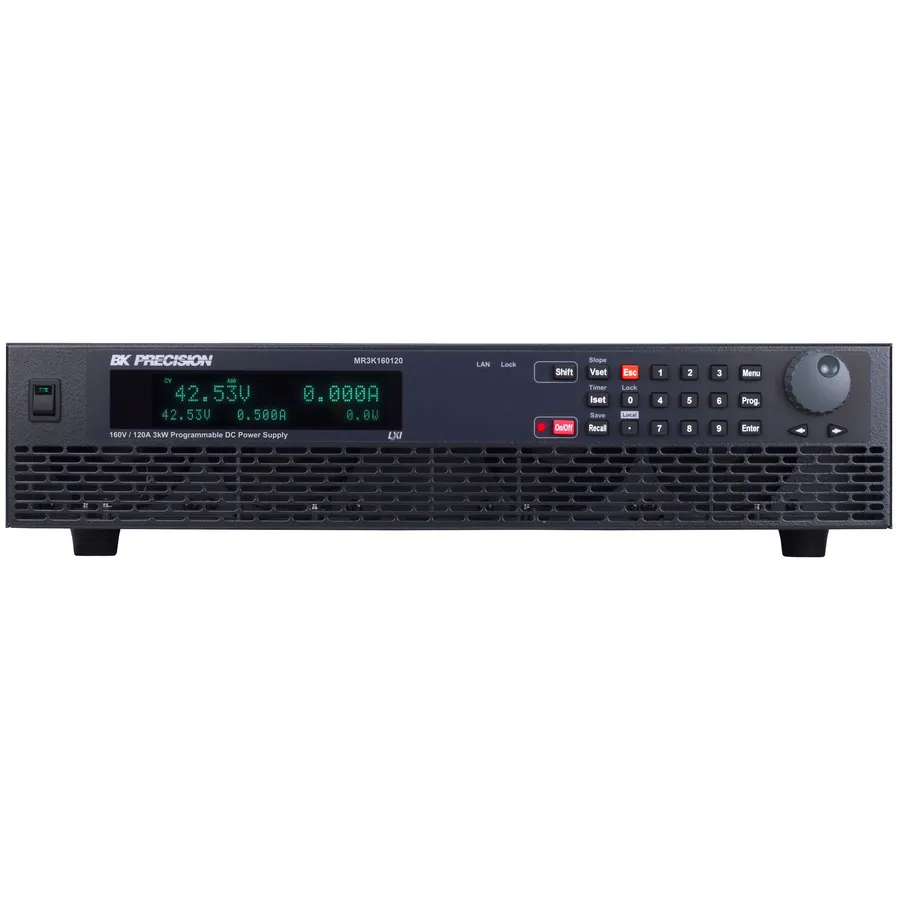

B&K Precision MR3K160120 HV DC Power Supply

Overview

The B&K Precision MR3K160120 is a multi-range high voltage DC power supply delivering up to 3kW of clean output power in a compact 2U form factor. Part of the MR Series, it is designed for both benchtop use and integration into automated test systems, offering excellent voltage regulation, low noise characteristics, and support for multiple remote control interfaces including USB, GPIB, and LXI-compliant LAN.

Key Features

• Output range: 0–160V, 0–120A with multi-ranging capability
• 3kW maximum output power in 2U form factor
• Multi-ranging operation replaces multiple fixed-range supplies
• Multiple control interfaces: USB (USBTMC), RS232, GPIB, and LXI-compliant LAN
• Galvanically isolated analog control and monitoring interface
• LED mode to minimize inrush current and protect LED panels
• Built-in Solar Array Simulator (SAS) storing up to 101 I-V curves
• Protection modes: OVP, OCP, OPP, OTP, and foldback protection
• Adjustable voltage and current slope (rise and fall time)
• List mode: 10 user-defined setups with up to 100 programmable steps each
• Remote sense input to compensate for voltage drop
• Master/Slave operation for up to 50 kW with 10 units in parallel
• Control up to 50 power supplies from one PC
• Included LabVIEW, IVI-C, and IVI.NET drivers and soft panel software
• cTUVus certification (UL and CSA compliant)

Applications

• Automated electronic test system applications
• Solar inverter testing with PV I-V curve simulation
• LED panel and driver testing
• High-voltage component research and development
• Benchtop power supply for laboratory use

Included Accessories

• Power cord
• Test report
• Certificate of calibration
