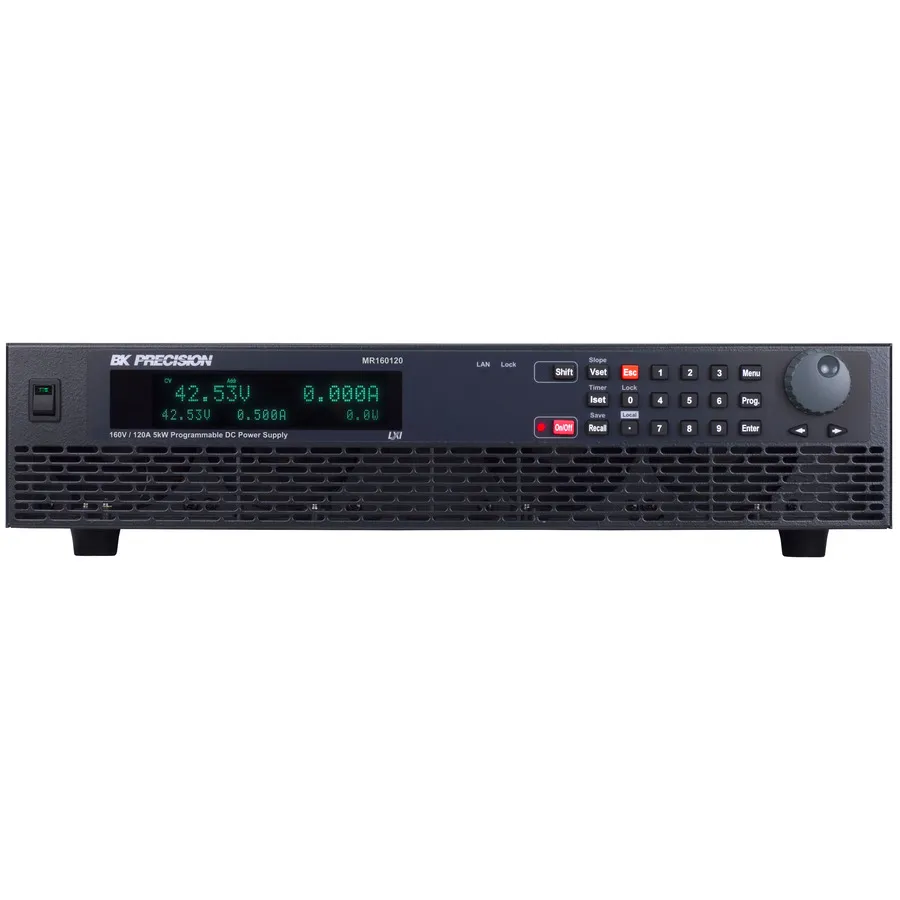

B&K Precision MR160120 HV DC Power Supply
Request a quote
The B&K Precision MR160120 delivers 5 kW across 0–160V and 0–120A with multi-range operation, USB, GPIB, and LAN interfaces ideal for benchtop and automated test system applications.
Product details
| Model | MR160120 |
| Manufacturer | B&K Precision |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The B&K Precision MR160120 is a high-voltage, multi-range DC power supply delivering up to 5 kW of clean output power in a compact 2U form factor. With 0–160V voltage and 0–120A current capability, it is well-suited for both benchtop applications and automated test system environments requiring flexible voltage and current ranges.
Key Features
- Output: 0–160V, 0–120A, up to 5 kW maximum power
- Multi-range operation capable of replacing multiple fixed-range supplies
- Compact 2U form factor for efficient bench use
- USB (USBTMC-compliant), RS232, GPIB, and LXI-compliant LAN interfaces
- Galvanically isolated analog control and monitoring interface
- Comprehensive protection: OVP, OCP, OPP, OTP, and foldback protection modes
- Adjustable voltage and current slope (rise and fall time) for controlled power-up
- List mode with 10 user-defined setups and up to 100 programmable steps each
- LED mode to minimize inrush current and protect LED panels
- Built-in Solar Array Simulator (SAS) function with 101 I-V curve storage
- Remote Sense for voltage drop compensation
- Master/Slave mode for parallel operation up to 50 kW with 10 units
- Control up to 50 units from a single PC
Applications
- Automated test system integration and equipment testing
- Benchtop power supply for research and development
- Solar inverter testing via SAS (photovoltaic I-V curve simulation)
- LED panel and lighting system validation
- Industrial equipment power validation
- Manufacturing and production quality testing
Included Accessories
- Power cord
- Test report
- Certificate of calibration
Specifications
| Voltage Range Selector | 100-199 |
| Output Voltage | 160 V |
| Current Range Selector | 100-199 |
| Output Current | 120 A |
| Power Range Selector | 5,000-9,999 |
| Power Rating | 5 kW |
| Mounting Type | Bench Top |
| Input Voltage | 200-240 VAC |
| Series | MR Series |
| Display | Digital |
| Interface | GPIB,USB,LAN,LXI,RS-232 |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Rack Space | 2U |
| Special Features | Multi Ranging, Remote Sense, Single Phase |
