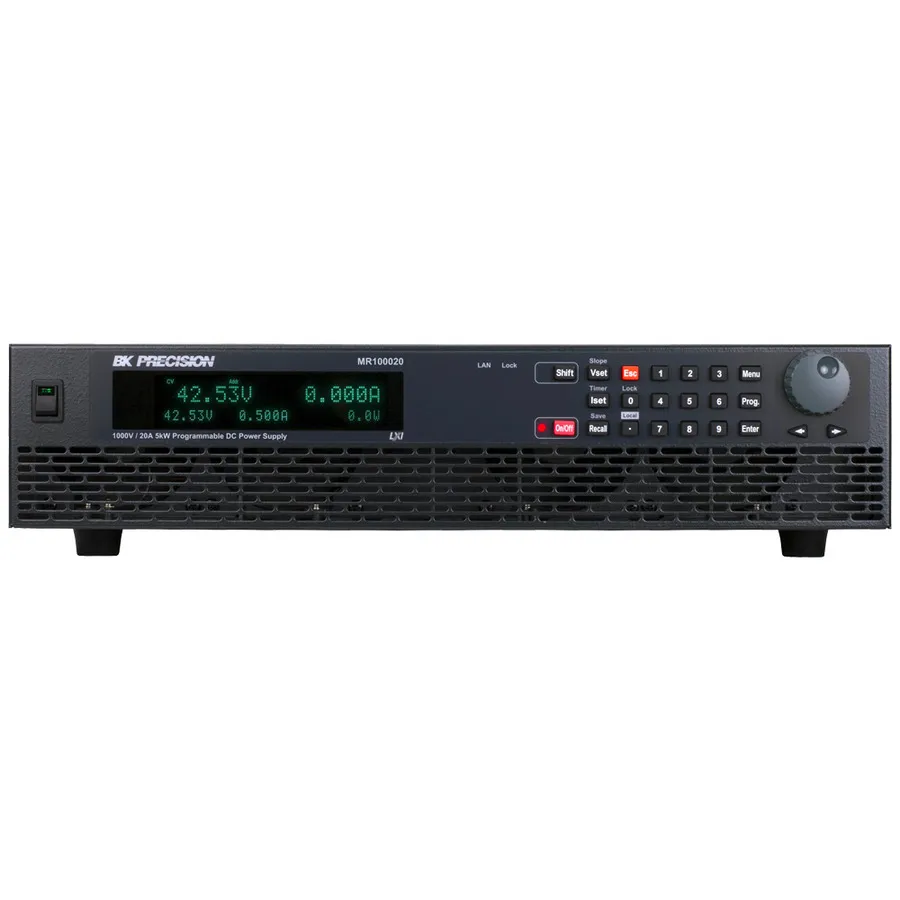

B&K Precision MR100020 HV DC Power Supply

Overview

The B&K Precision MR100020 is a 5 kW high voltage multi-range DC power supply designed for both benchtop and automated test system applications. With output up to 1000 V and 80 A, the multi-ranging architecture allows a single unit to replace multiple fixed-range power supplies, reducing cost and rack space in laboratory and production environments.

Key Features

• Output up to 1000 V or 80 A with 5 kW total power
• Multi-ranging operation to replace multiple fixed-range supplies
• Compact 2U form factor for rack mounting
• Single-phase AC input configuration
• Fast command response time (10 ms)
• Multiple interfaces: USB (USBTMC-compliant), RS232, GPIB, and LXI compliant LAN
• Galvanically isolated analog control and monitoring
• Built-in Solar Array Simulator (SAS) function for PV I-V curve generation
• Comprehensive protection: OVP, OCP, OPP, OTP, and foldback modes
• Adjustable voltage and current slope (rise and fall time)
• Internal list mode programming
• Parallel operation for increased output power
• Remote Sense to compensate for voltage drop
• Control up to 30 units from one PC with multi-unit control
• Soft panel software included for remote control and data logging
• cTUVus certification (UL and CSA compliant)
• 3-year warranty

Applications

• Solar inverter testing with photovoltaic I-V curve simulation
• High voltage component and system testing
• Automated test system integration
• Benchtop laboratory use
• Research and development
