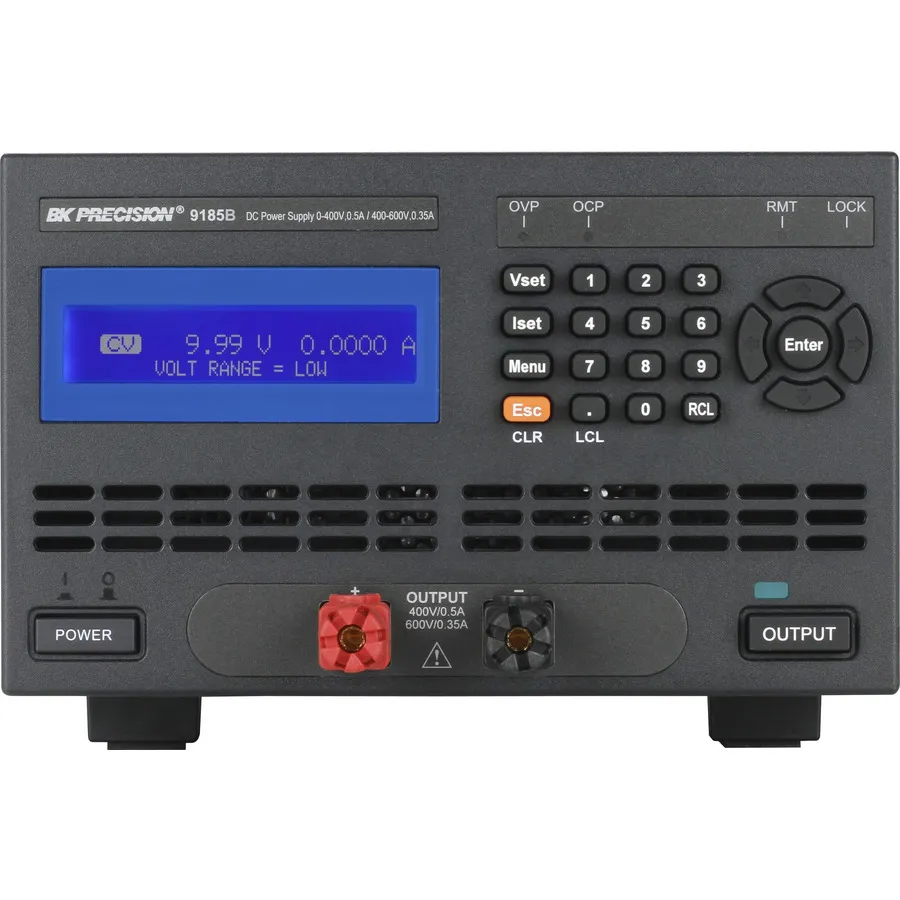

B&K Precision 9185B DC Power Supply

Overview

The B&K Precision 9185B is a 210W programmable DC power supply designed for demanding applications in R&D, design verification, and production testing. It features dual-range output capability (0–400V/0.5A or 0–600V/0.35A), exceptionally low ripple and noise, excellent regulation, and fast transient response time. The 9185B is ideal for automated test equipment (ATE) and laboratory applications requiring clean, stable, and precise output power.

Key Features

• Dual-range output: Low range 0 to 400V at 0.5A, High range 0 to 600V at 0.35A
• 210W maximum power output
• Exceptionally low ripple and noise
• Fast transient response time less than 50 microseconds
• Overvoltage, overcurrent, and overtemperature protection (OVP/OCP/OTP)
• Programmable voltage and current slew rates
• Standard USB interface with optional RS232, RS485, GPIB, and LAN interfaces
• LED test modes for safe LED panel testing
• List mode for up to 10 stored test sequences with maximum 150 total steps
• Front and rear panel outputs
• Key-lock function and automatic range selection
• LabVIEW driver support available
• Three-year warranty

Applications

• Research and development (R&D)
• Design verification testing
• Production testing and automated test equipment (ATE)
• LED panel and lighting testing
• Component and circuit characterization

Included Accessories

• User's manual
• AC power cord
• USB interface cable (type A to type B)
• Line fuse
• Certificate of calibration and test report
• Free application software for remote control
