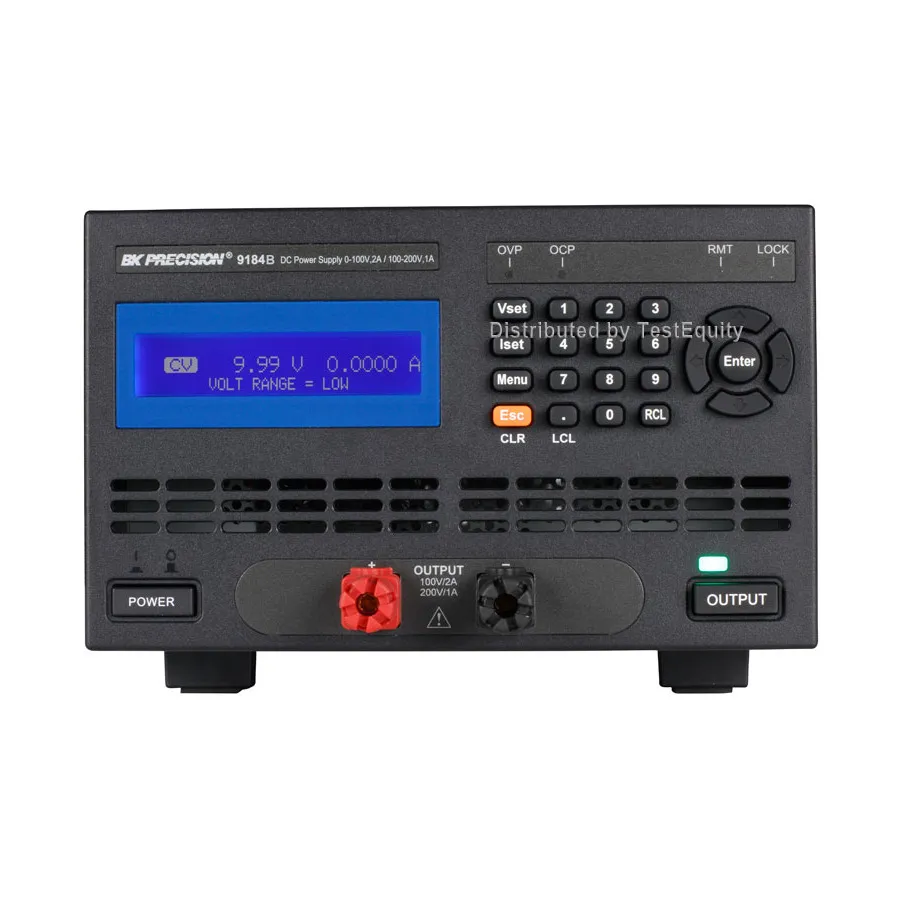

B&K Precision 9184B DC Power Supply
B&K Precision 9184B is a programmable dual-range DC supply with 200W output, 0–200V/0–1A or 0–100V/0–2A ranges, exceptionally low ripple and noise, and USB interface.
Product details
| Model | 9184B |
| Manufacturer | B&K Precision |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The B&K Precision 9184B is a programmable single-output DC power supply designed for demanding applications in R&D, design verification, and production testing. It delivers 200W of clean, stable power with exceptionally low ripple and noise, fast transient response, and excellent regulation. With dual voltage and current ranges, the 9184B provides maximum flexibility for testing diverse devices and circuits requiring higher voltage levels.
The 9184B includes standard USB interface with optional RS232, RS485, GPIB, and LAN connectivity via modular interface cards for seamless integration into automated test systems. A built-in web server allows remote configuration and monitoring. The instrument features programmable voltage and current slew rates, automatic range selection, low current mode for controlled voltage rise times, and list mode for executing up to 10 stored test sequences.
Key Features
- Dual-range output: 0–100V/0–2A (low range) or 0–200V/0–1A (high range)
- 200W maximum output power
- Exceptionally low ripple and noise for clean power delivery
- Fast transient response time under 50 microseconds
- Overvoltage, overcurrent, and overtemperature protection (OVP/OCP/OTP)
- Programmable voltage and current slew rates
- Low Current Mode for controlled rise time at low current operation
- Front and rear panel outputs with remote sense terminals
- Standard USB interface; optional GPIB, LAN, RS232, RS485 connectivity
- Special LED test modes for safe LED panel testing
- Automatic range selection and key-lock function
- Fast command processing (under 10 ms)
- LabVIEW drivers available
- Three-year warranty
Applications
- R&D and design verification testing
- Automated production testing (ATE)
- LED panel manufacturing and testing
- Electronics repair and troubleshooting
- High-voltage circuit design and prototyping
- Power system validation
- Component testing requiring precise voltage control
Included Accessories
- User manual
- AC power cord
- USB interface cable (type A to type B)
- Line fuse
- Certificate of calibration and test report
- Application software for remote control
Specifications
| Voltage Range Selector | 200-299 |
| Output Voltage | 200 V |
| Current Range Selector | 0-2.49 |
| Output Current | 2 A |
| Power Range Selector | 200-499 |
| Power Rating | 200 W |
| Mounting Type | Bench Top |
| Input Voltage | 115/230 VAC |
| Series | Performance Series |
| Display | LCD |
| Interface | USB |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Low Noise, Low Ripple |
