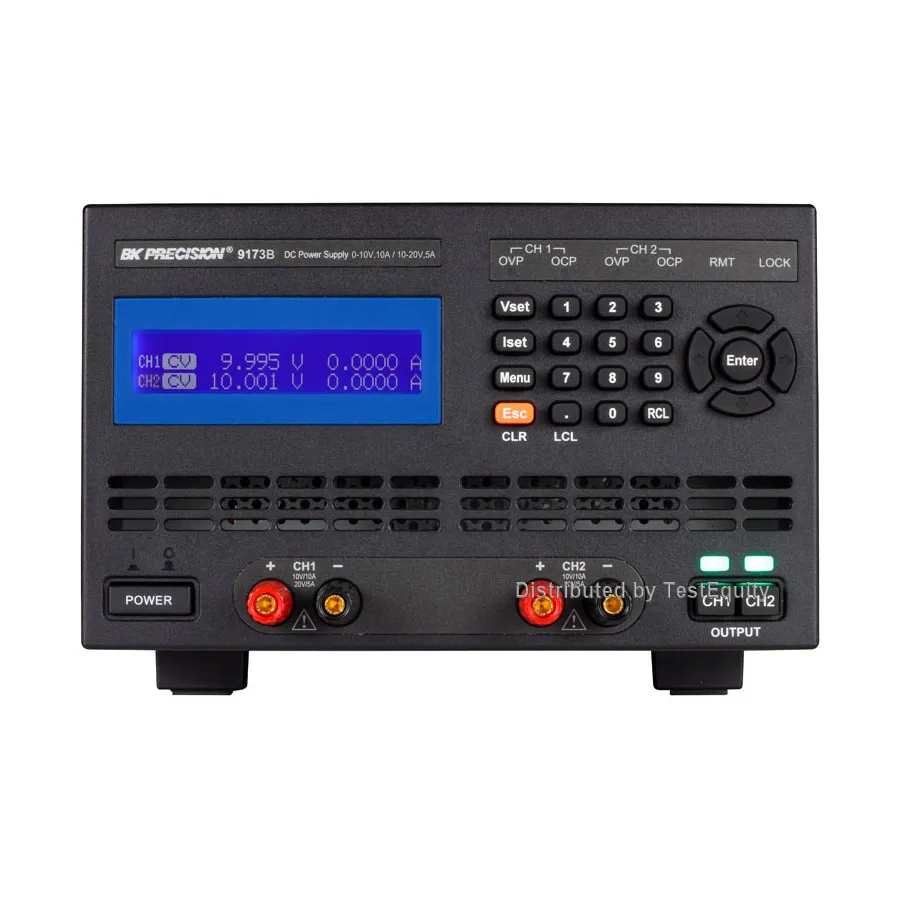

B&K Precision 9173B DC Power Supply

Overview

The B&K Precision 9173B is a dual-output programmable DC power supply designed for demanding R&D, design verification, and production testing applications. With 200W maximum output power and dual voltage/current ranges, it delivers exceptionally clean, stable output with low ripple and noise characteristics.

Key Features

• Dual output with selectable ranges: 0–10V/10A (low) and 0–20V/5A (high)
• Maximum output power: 200W
• Exceptionally low ripple and noise
• Overvoltage (OVP), overcurrent (OCP), and overtemperature (OTP) protection
• Fast transient response time: <50 µs
• Programmable voltage and current slew rates
• Standard USB interface; optional RS232, RS485, GPIB, and LAN interfaces
• List mode: up to 10 stored test sequences with 150 total steps
• Front and rear panel outputs with remote sense terminals
• LED test modes for safe LED panel testing
• Modular interface card slots for future expandability

Applications

• R&D and design verification
• Production testing and automated test equipment (ATE)
• LED panel testing and characterization
• Electronic component testing and validation

Included Accessories

• User's manual
• AC power cord
• USB interface cable (type A to type B)
• Line fuse
• Certificate of calibration and test report
• Remote control application software
