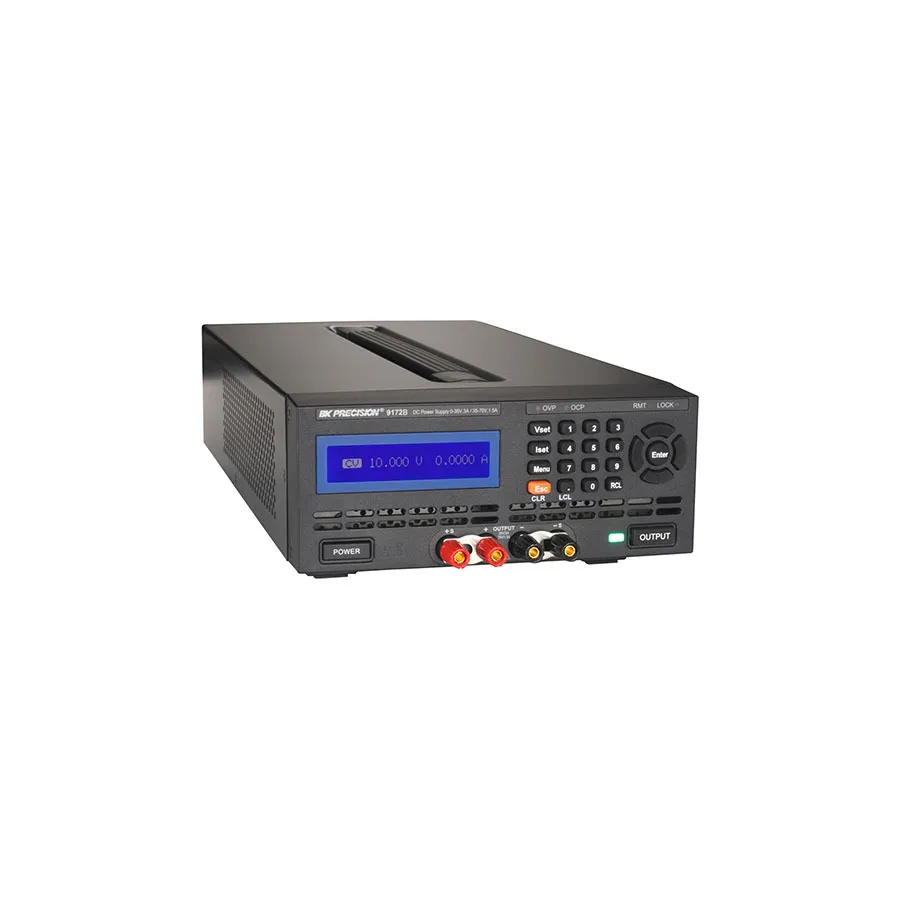

B&K Precision 9172B DC Power Supply
Request a quote
Single-output programmable DC power supply with dual range 35V/3A and 70V/1.5A, exceptionally low ripple and noise, and USB/GPIB/LAN interfaces.
Product details
| Model | 9172B |
| Manufacturer | B&K Precision |
| Category | DC Power Supplies |
| Availability | Made to order |
Description
Overview
The B&K Precision 9172B is a single-output programmable DC power supply delivering clean, stable, and precise output power. It provides dual output ranges (35V/3A or 70V/1.5A) with exceptionally low ripple and noise, fast transient response, and excellent regulation characteristics. The supply is designed for laboratory and production test environments requiring both front and rear panel output access.
Key Features
- Dual range outputs: 35V/3A or 70V/1.5A
- Exceptionally low ripple and noise
- Fast transient response time: < 50 µs
- Fast command processing: < 10 ms
- List mode with up to 10 test sequences (150 steps maximum)
- Overvoltage/Overcurrent/Overtemperature protection (OVP/OCP/OTP)
- Programmable voltage and current slew rates
- Front and rear panel outputs
- Key-lock protection
- Standard USB interface (SCPI IEEE488.2 compliant)
- Optional modular interface cards for LAN, GPIB, Digital I/O, RS485, RS232
- LabVIEW drivers available
Applications
- Component and device characterization
- Automated test system integration
- Production line testing and troubleshooting
- Laboratory power supply and equipment validation
Specifications
| Voltage Range Selector | 30-49.9 |
| Output Voltage | 35 V |
| Current Range Selector | 2.5-4.9 |
| Output Current | 3 A |
| Power Range Selector | 1-199 |
| Power Rating | 105 W |
| Mounting Type | Bench Top |
| Input Voltage | 115/230 VAC |
| Series | 9170B Series |
| Display | LCD |
| Interface | USB |
| Number of Outputs | Single Output |
| Programmable | Yes |
| Special Features | Remote Sense |
