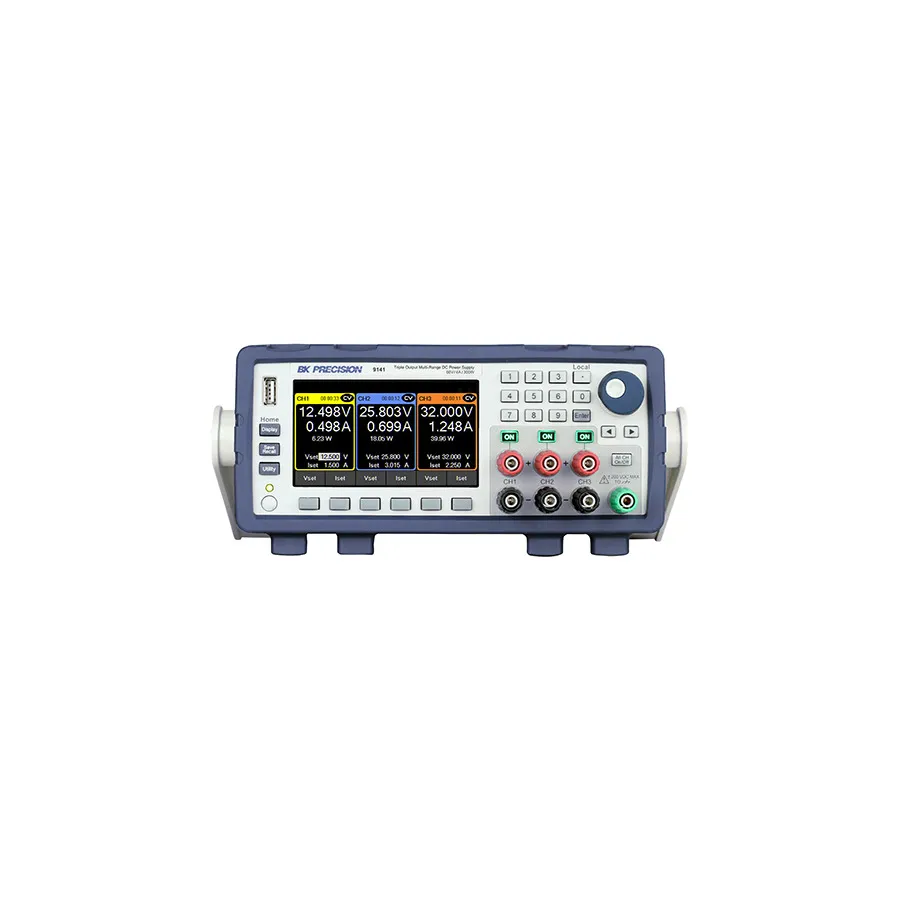

B&K Precision 9141-GPIB Triple Output DC Power Supply

Overview

The B&K Precision 9141-GPIB is a triple output DC power supply from the 9140 Series, providing three independent, floating output channels rated at 60V and 4A each (100W per channel, 300W total). Unlike standard models, the 9141-GPIB includes an optional GPIB interface for remote control and system integration, making it ideal for automated test environments and research applications requiring centralized instrument control.

Key Features

• Three independent galvanically isolated floating output channels: 60V, 4A, 100W per channel
• Optional GPIB interface for remote control and system integration
• USB (USBTMC-compliant) and LXI-compliant LAN interfaces standard
• High power density in compact 2U half-rack form factor
• Multi-ranging operation for flexible voltage/current combinations
• Low output ripple and noise down to 1 mVrms
• Advanced list mode programming with 10 internal programs
• Channel coupling and tracking with configurable output delays
• Direct USB data logging for voltage and current monitoring
• Adjustable voltage and current slew rates
• Thermostatically-controlled fans for quiet operation
• OVP, OCP, and OTP protection with key-lock function
• LabVIEW, IVI-C, and IVI.NET drivers included

Applications

• Automated test systems with remote control requirements
• System integration for multi-instrument testing
• Research and development with centralized control
• Device characterization and stress testing
