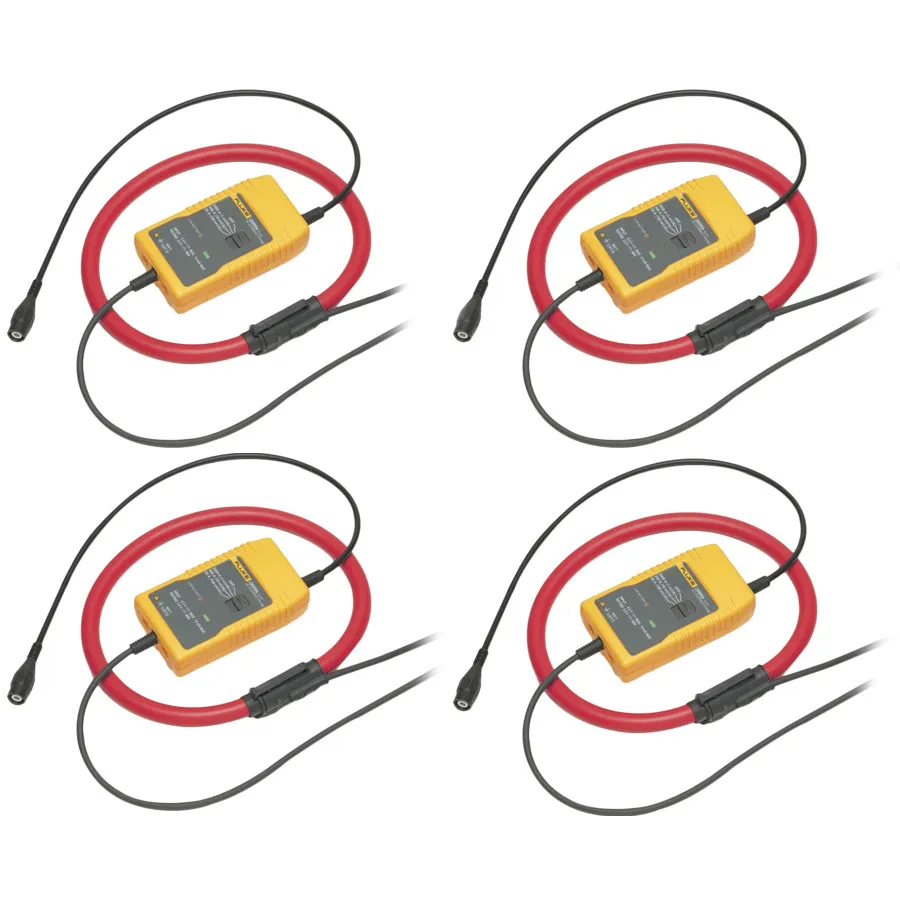

Fluke I3000 FLEX-4PK AC Current Probe
Request a quote
Fluke I3000 FLEX-4PK is a 4-pack of AC current probes with 30/300/3000 A range, Rogowski principle, and 10 Hz to 50 kHz bandwidth.
Product details
| Model | I3000 FLEX-4PK |
| Manufacturer | Fluke |
| Category | Clamp Meters |
| Availability | Made to order |
Description
Overview
The Fluke I3000 FLEX-4PK is a 4-pack of AC current probes designed for use with oscilloscopes, recorders, and data loggers. Each probe utilizes the Rogowski principle for non-intrusive current measurement up to 3000 A. The flexible measuring head enables quick installation in cramped or hard-to-reach areas.
Key Features
- 4-pack quantity for multiple measurement points
- Current ranges: 30 A, 300 A, 3000 A AC RMS
- Output sensitivity: 100 mV, 10 mV, 1 mV per A
- Frequency response: 10 Hz to 50 kHz (-3 dB)
- 24-inch circumference flexible head
- Load impedance: 100 kΩ minimum
- Rogowski principle for accurate AC current measurement
Applications
- Oscilloscope current measurement
- Data logger connections
- Recorder instrument integration
- Power system monitoring in industrial settings
Specifications
| Series | i3000s Flex Series |
| Bandwidth | 50 MHz |
| Cable Length | 610 mm |
| Maximum Current | 3000 A |
| Safety Rating | CAT3 |
