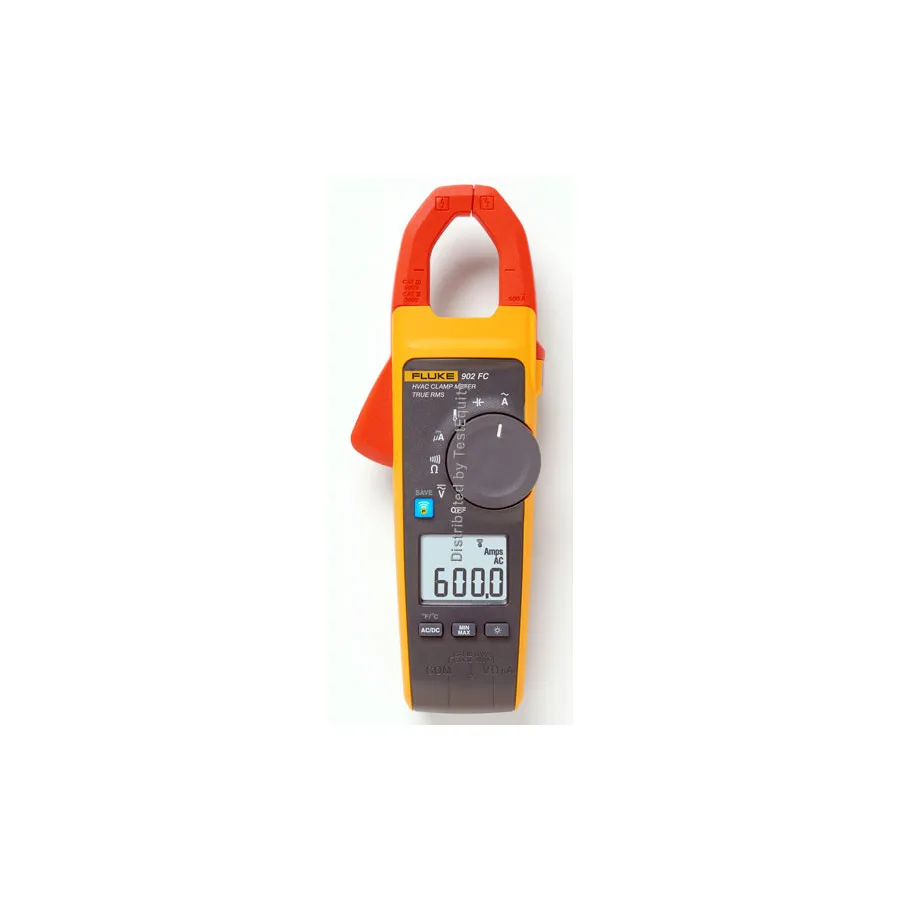

Fluke FLUKE-902 FC True-rms HVAC Clamp Meter

Overview

The Fluke 902 FC is a wireless True-rms HVAC clamp meter with Fluke Connect capability, designed for HVAC technicians who need essential measurements without carrying multiple tools. It measures AC/DC voltage, AC current, microamps for pilot light sensors, resistance up to 60 kilohms, capacitance, and contact temperature. The wireless connectivity allows technicians to safely measure from outside the arc blast zone and share data in real time with colleagues.

Key Features

• 600V AC/DC, 600A AC current measurement
• True-rms voltage and current for accurate readings
• CAT III 600V / CAT IV 300V safety rating
• 200 µA DC current measurement for flame sensor testing
• 1000 µF capacitance measurement for testing motor capacitors
• 60 kΩ resistance measurement with extended range for thermistors
• Type K thermocouple input for flue gas temperature measurement (-10°C to 400°C)
• Wireless Fluke Connect enabled for real-time collaboration and trend monitoring on mobile devices
• Min/Max recording to capture measurement variations automatically
• Compact design fits easily in tight work spaces
• Three-year warranty

Applications

• HVAC system troubleshooting and diagnostics
• Flame rod and pilot light sensor testing
• Motor capacitor testing and analysis
• Temperature measurement with Type K thermocouple
• Field reporting and collaboration via Fluke Connect

Included Accessories

• TL75 test leads (one pair)
• 80BK integrated DMM temperature probe
• Two AA alkaline batteries
• Soft carrying case
• User manual and statement of calibration practices
