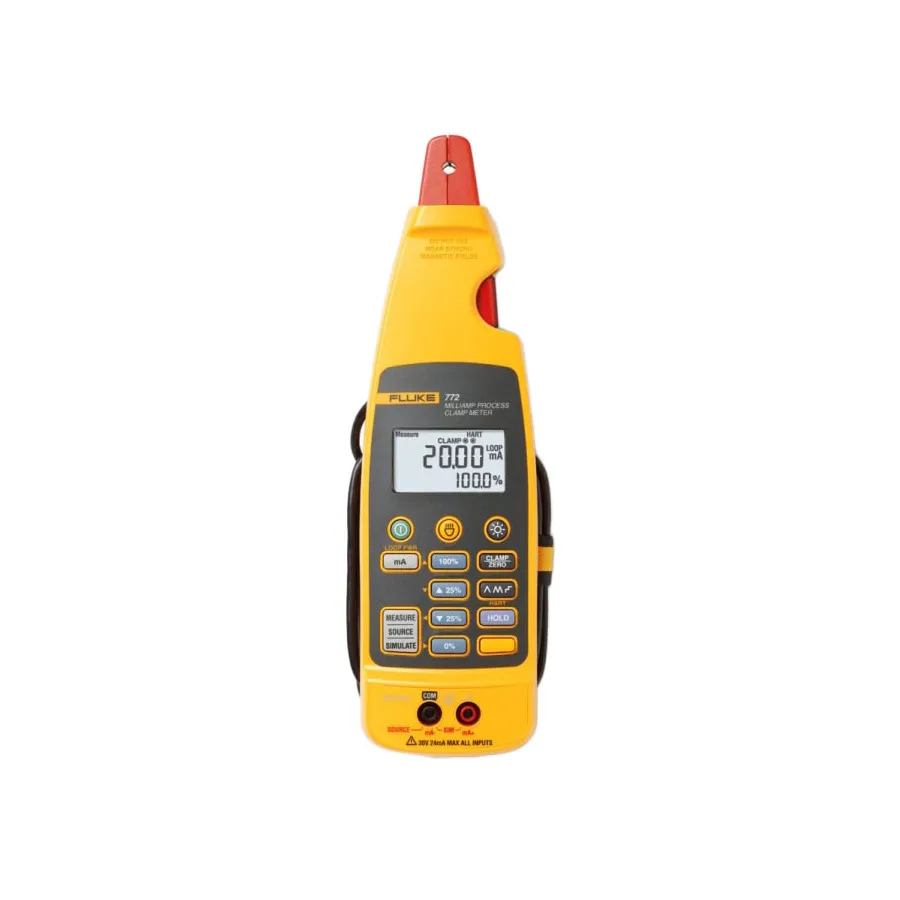

Fluke FLUKE-772 Milliamp Process Clamp Meter
Request a quote
Fluke FLUKE-772 Milliamp Process Clamp Meter measures 4-20 mA signals without breaking the loop with 0.2% accuracy and 0.01 mA resolution.
Product details
| Model | FLUKE-772 |
| Manufacturer | Fluke |
| Category | Clamp Meters |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-772 Milliamp Process Clamp Loop Meter is designed to measure, source, and simulate 4-20 mA signals for testing control system I/O. It builds on the capabilities of the Fluke 771 with expanded functionality for loop testing applications.
Key Features
- Measures 4 to 20 mA signals without breaking the loop
- Best in class 0.2% accuracy
- 0.01 mA resolution and sensitivity
- Simultaneously measures mA signal with clamp and sources mA signal
- In-circuit measurement with 24V loop power for powering and testing transmitters
- Designed for PLC and control system analog I/O measurements
- Auto-off and backlight timeout for extended battery life
Included Accessories
- 4 AA alkaline batteries (installed)
- Soft carrying case
- TL75 test leads
- AC 72 detachable clip
- TL 940 mini hook test leads
- Hanging tool with hook and loop strap
Specifications
| Maximum DC Current | 20 mA |
| Maximum DC Voltage | 30 V |
| Type | DC |
| Series | 770 Series |
| Applications | Transmitters, Valves, PLC, DCS I/O |
