Fluke FLK-393FC-PVLEAD Solar Clamp Meter and Test Lead Kit
Request a quote
Industrial-grade 393 FC clamp meter with MC4 leads for safe DC voltage and current measurements on solar PV systems up to 1500V with Fluke Connect wireless logging.
Product details
| Model | FLK-393FC-PVLEAD |
| Manufacturer | Fluke |
| Category | Clamp Meters |
| Availability | Made to order |
Description
Overview
The Fluke FLK-393FC-PVLEAD is an industrial clamp meter kit designed specifically for solar photovoltaic (PV) installation and maintenance professionals. The 393 FC CAT III 1500V true-RMS clamp meter combines with Pomona MC4 test leads to enable safe inline voltage and current measurements on PV arrays without disrupting power generation or piercing conductors.
Key Features
- 393 FC CAT III 1500V true-RMS clamp meter with thin jaw for access in crowded combiner boxes
- Dual display showing voltage and current simultaneously for quick verification
- IP54 rating for outdoor and harsh environment use
- DC power measurement displayed in kVA
- iFlex 18-inch flexible current probe for awkward angles and tight spaces
- Fluke Connect (FC) wireless logging and reporting via mobile app
- Pomona MC4 to 4mm test leads with CAT III 1500V safety rating and right-angle plugs
- PVLEAD1 and PVLEAD3 MC4 lead sets included for maximum flexibility
Applications
- Solar array installation and commissioning
- String voltage and current validation
- PV system maintenance and troubleshooting
- Safe inline measurements without powering down systems
- Performance monitoring and documentation via Fluke Connect

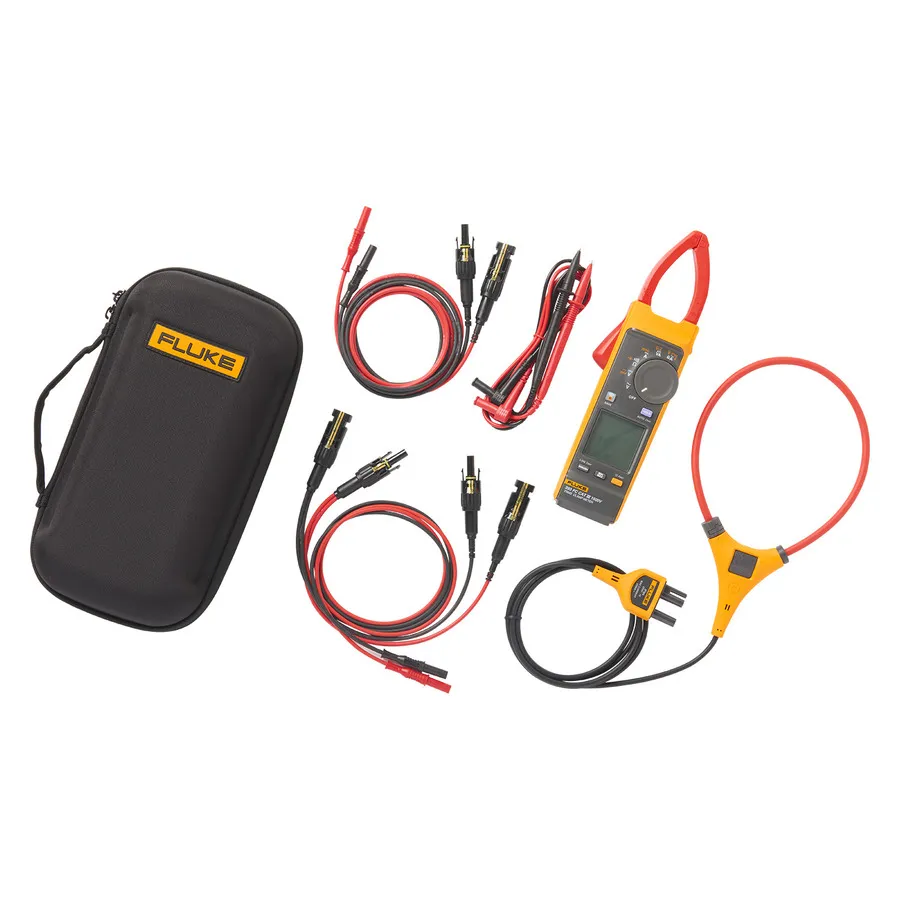

Included Accessories
- Fluke 393 FC CAT III 1500V clamp meter
- iFlex 18-inch flexible current probe
- Test leads with CAT III 1500V rating and safety caps
- TPAK magnetic hanging strap
- Pomona PVLEAD1 MC4 to 4mm test lead set
- Pomona PVLEAD3 MC4 solar clamp test lead set
- Premium carrying case
- 3-year warranty
Specifications
| Maximum AC Current | 1000 A |
| Maximum DC Current | 1000 A |
| Maximum AC Voltage | 1000 V |
| Maximum DC Voltage | 1500 V |
| Maximum Jaw Opening | 34 mm |
| Type | AC/DC |
| True RMS | Yes |
| Display Digits | 3 1/2 |
| Series | 393 Series |
| Applications | Photovoltaic |
| Display Type | LCD |
| Maximum Wire Size | 34 mm |
