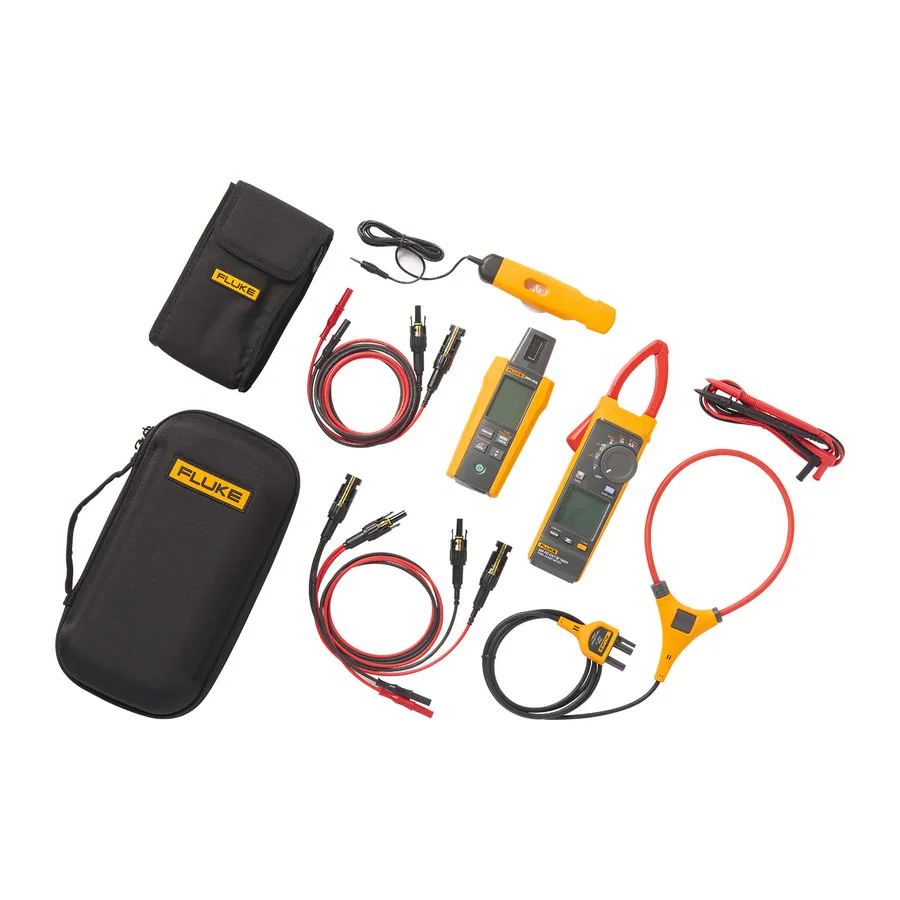

Fluke FLK-393-IRR-PVLEAD Solar Tool Kit
Request a quote
Fluke solar PV testing kit with 393 FC clamp meter, IRR1-SOL irradiance meter, and MC4 leads for commissioning and troubleshooting photovoltaic systems safely.
Product details
| Model | FLK-393-IRR-PVLEAD |
| Manufacturer | Fluke |
| Category | Clamp Meters |
| Availability | Made to order |
Description
Overview
The Fluke FLK-393-IRR-PVLEAD is a comprehensive solar photovoltaic testing toolkit designed for installation technicians and maintenance professionals. The kit combines three essential tools: a CAT III 1500V clamp meter with dual display, an irradiance meter for solar panel performance validation, and MC4 test leads for safe PV system measurements. This integrated solution enables technicians to remain online while testing and troubleshooting photovoltaic arrays without interrupting power generation.
Key Features
- 393 FC Clamp Meter: CAT III 1500V TRMS clamp meter with dual display for simultaneous voltage and current measurement, IP54 rating for outdoor use, DC power measurement in kVA, and Fluke Connect software integration for logging and reporting
- IRR1-SOL Irradiance Meter: Measures solar irradiance in watts per square meter to IEC 62446-1 standards, captures ambient and PV module temperature, determines array orientation and tilt angles, with high-contrast LCD for sunlight readability
- MC4 Test Leads: Pomona MC4 to 4mm banana plug connectors, rated CAT III 1000V / CAT IV 600V at 20A, compliant with IEC/EN 61010-031, enables safe inline measurements on PV systems while maintaining power generation
- Thin-jaw clamp head for access to cables in crowded combiner boxes
- 18-inch flexible iFlex current probe for difficult-to-reach measurements
- TPAK magnetic hanging strap for hands-free operation
Applications
- Solar photovoltaic system installation and commissioning
- PV array troubleshooting and performance validation
- Individual panel and series string output verification
- Preventive maintenance and system monitoring
- Compliance testing to IEC 62446-1 standards
Included Accessories
- Fluke 393 FC CAT III 1500V TRMS clamp meter
- Test leads with safety caps (CAT III 1500V)
- iFlex 18-inch flexible current probe
- TPAK magnetic hanging strap
- Premium carrying case
- FLK-IRR1-SOL Solar Irradiance Meter
- FLK80PR-IRR External Temperature Probe with suction cup
- C250 carrying case with shoulder strap
- 4 AA alkaline batteries
- User manual
- Pomona PVLEAD1 MC4 to 4mm test lead set
- Pomona PVLEAD3 MC4 solar clamp test lead set
Specifications
| Maximum AC Current | 1000 A |
| Maximum DC Current | 1000 A |
| Maximum AC Voltage | 1000 V |
| Maximum DC Voltage | 1500 V |
| Maximum Jaw Opening | 34 mm |
| Type | AC/DC |
| True RMS | Yes |
| Display Digits | 3 1/2 |
| Series | 393 Series |
| Applications | Photovoltaic |
| Maximum Wire Size | 34 mm |
| Measuring Range | 0 to 1400 W/m sq |
| Temperature Range | -22 to 212F |
