Fluke 2062 Advanced Pro Wire Tracer Kit

Overview

The Fluke 2062 Advanced Pro Wire Tracer is an advanced diagnostic tool that combines traditional wire tracing with patented Smart Sensor technology. The high-resolution 3.5-inch TFT LCD color display visually locates and displays energized wires within walls, floors, and ceilings, eliminating guesswork. With CAT IV 600 V safety rating and protection from transient overvoltage spikes up to 8,000 V, it is designed for critical environments where equipment cannot be taken offline.

Key Features

• Patented Smart Sensor technology with high-resolution 3.5-inch TFT LCD color display
• Visually locates and displays energized wires with orientation visualization
• Four receiver tracing modes: Smart Sensor, Tip Sensor, Breaker, and Non-Contact Voltage Detection
• CAT IV 600 V safety rating with protection from 8,000 V transient spikes
• Three transmitter power modes: High, Low, and Loop
• Dual output frequencies: 6 kHz and 33 kHz (automatically selected)
• Eight receiver sensitivity levels for enhanced accuracy
• Tip sensor for accessing tight spaces and junction boxes
• i400 AC Current Clamp included for signal induction without bare conductor access
• Embedded help screens on display for easy operation
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• 1-year warranty

Applications

• Locating and visualizing energized wires in walls, ceilings, and floors
• Industrial plant electrical troubleshooting
• Hospital and critical infrastructure wire tracing
• Identifying wire breaks, opens, shorts, and fuse locations
• Commercial and residential electrical maintenance

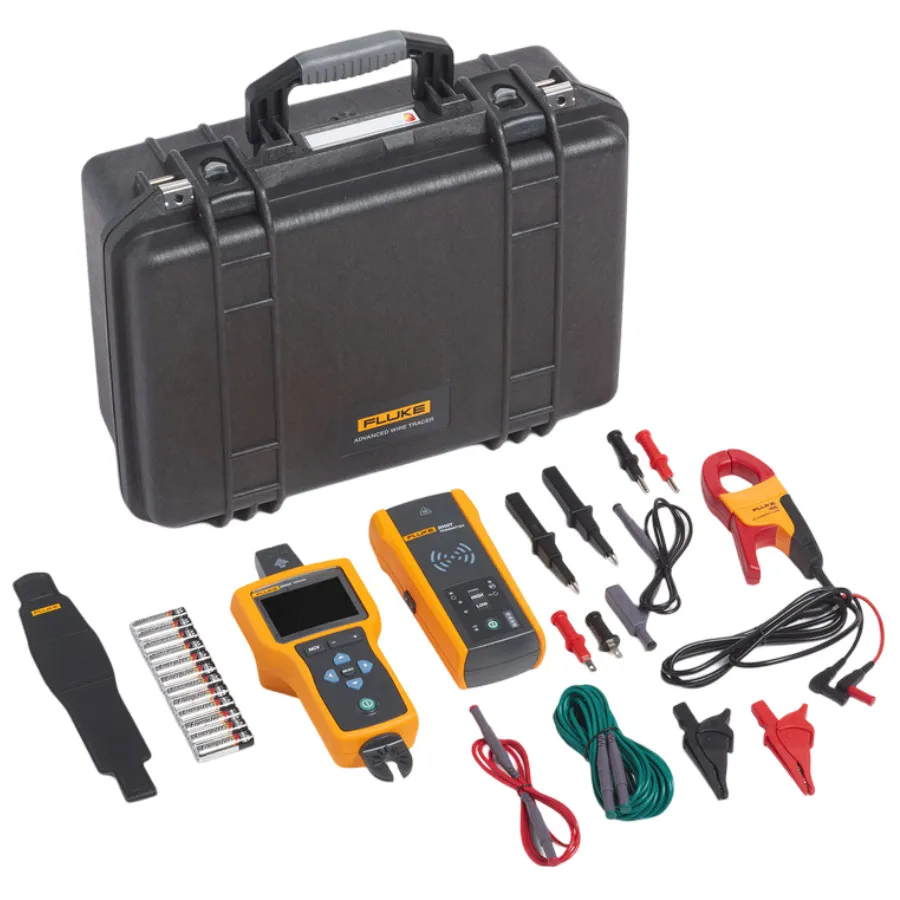

Included Accessories

• 2062-R Receiver with Smart Sensor display
• 2000-T Transmitter
• i400 AC Current Clamp
• Magnetic hanger
• Test lead accessories
• Batteries
• Hard carrying case
