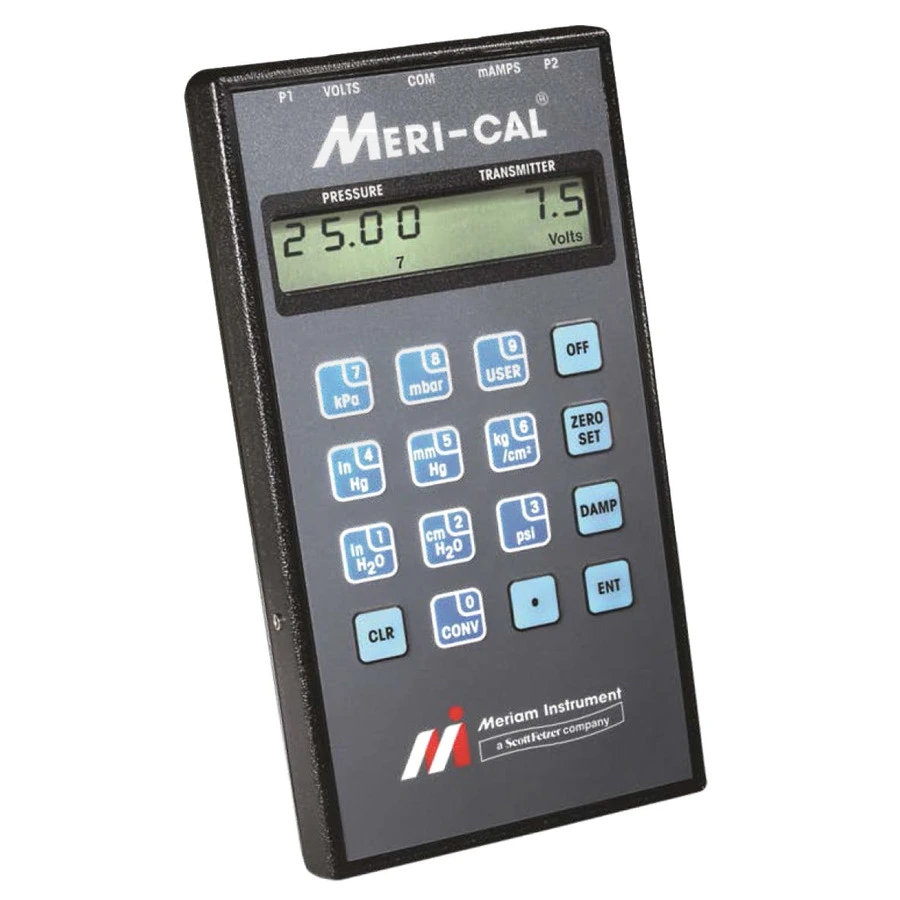

Meriam ZDP2000I-10KIT D Meri-Cal Digital Calibrator Kit
Request a quote
Meriam Meri-Cal ZDP2000I-10KIT D portable digital calibrator for differential pressure measurement with ±0.1% accuracy, 2000" wc range, and NiCad battery power.
Product details
| Model | ZDP2000I-10KIT D |
| Manufacturer | Meriam |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Meriam Meri-Cal is a portable digital manometer and calibrator designed for precise pressure and differential pressure measurement in field environments. It combines laboratory-level accuracy with rugged construction, bringing test and calibration capability from the bench to the jobsite. The instrument simultaneously displays both pressure readings and electronic transducer/transmitter output values.
Key Features
- Two-port differential pressure sensor
- ±0.1% accuracy of reading
- Pressure range of 0 to 2000" water column (wc)
- Eight selectable engineering units for measurement display
- Full temperature compensation from -4°C to 104°C
- Voltage/current output: ±30 mA/Vdc
- NiCad battery powered for portable field use
- Simultaneous display of pressure and transducer output
Applications
- Field calibration of pressure transducers and transmitters
- HVAC system pressure testing and balancing
- Pneumatic system verification and troubleshooting
- Laboratory pressure measurement and standards
Specifications
| Accuracy | Pressure: ± 0.1% of reading, ± 1 count, Voltage/Current: ± 0.1% of reading, ± 2 counts. Optional ± 0.05% of reading, ±1 count on pressure sensors. Accuracy includes the combined effects of linearity, hysteresis, repeatability and temperature over the cali |
| DC Current | 0 to 30 mAdc |
| DC Voltage | 0 to 30 Vdc |
| Dimensions | 4 x 7.5 x 1.9 in. |
| Display | 8 digit (4 pressure or DP and 4 voltage or current) LCD type with .3" high (7.6 mm) digits. |
| Includes | (1) ZDP2000I-10 0 to 2000 inches H2O, (1) ZA34386 Calibration fitting, (1) ZB34686 961P Hand pump, (1) ZA900529-00004 Test Lead Kit, (1) ZB900615-00004 AC Charger, (1) ZA34491 Carrying Case and NIST Calibration Certificate |
| Media Type | Non-isolated sensor for clean, dry, non-corrosive gases. |
| Operating Temperature | -6.7 to 50°C |
| Power | NI-CAD Rechargeable, Minimum of 40 Hrs @ 70°F (21°C); 20 Hrs @ -20°F (-29°C) |
| Product Type | Digital Calibrator Kit |
| Resolution | Auto-ranging for optimal accuracy and resolution of the display for both pressure and electrical inputs. |
| Storage Temperature | -40 to 60°C |
