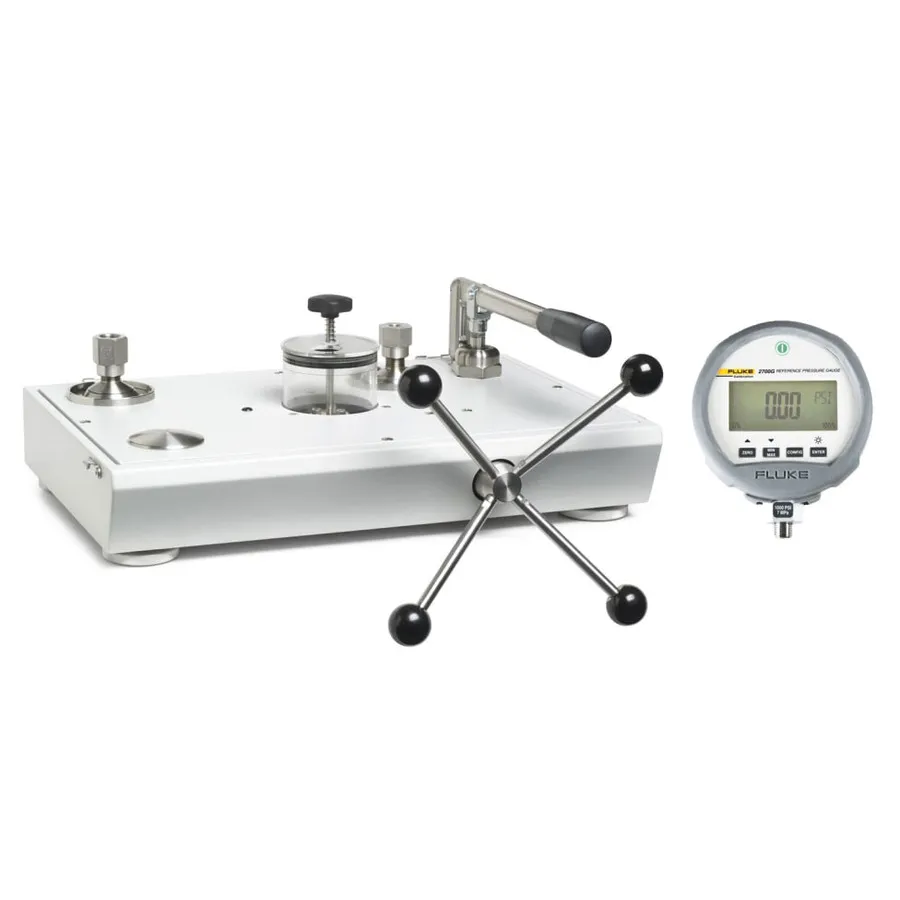

Fluke P5515-2700G-1 Hydraulic Calibrator

Overview

The Fluke P5515 is a portable hydraulic pressure comparator designed for checking pressure measuring instruments against master test gauges, indicators, or transducers. This versatile device generates pressures up to 20,000 psi (1,400 bar) and provides a quick and reliable solution for pressure calibration across laboratory and field environments. The P5515 operates with a wide range of non-flammable fluids and incorporates several features from Fluke's proven deadweight tester line.

Key Features

• Pressure range 0 to 20,000 psi (1,400 bar)
• Built-in hand pump for system priming and large volume applications
• High-quality screw press for precise pressure generation and fine control
• Acrylic reservoir for visibility of fluid level and quality
• Portable and compact design suitable for field use
• Compatible with multiple reference pressure gauges for customized calibration setups

Applications

• Calibration of dial gauges and analog instruments
• Calibration of digital pressure gauges and multimeters
• Pressure transmitter and sensor verification
• Laboratory and field pressure instrument testing

Included Accessories

• 2700G-G70M Reference Pressure Gauge (0 to 10,000 psi / 0 to 70 MPa, ±0.02% FS accuracy)
