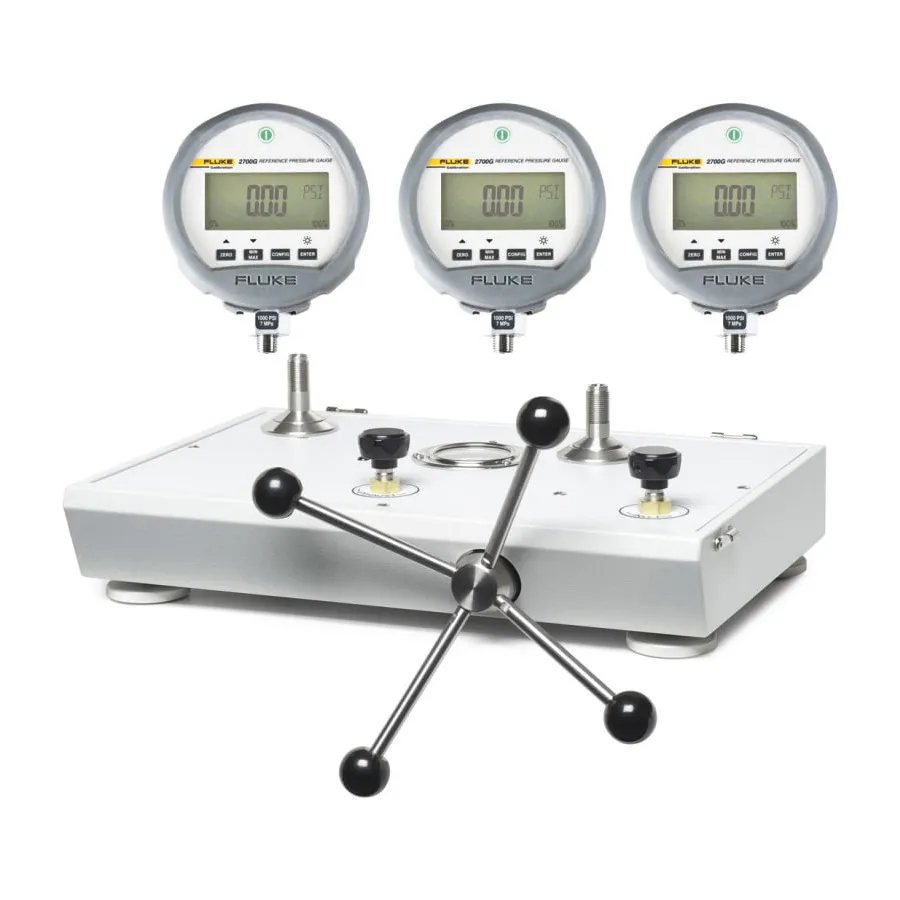

Fluke P5513-2700G-3 Pneumatic Calibrator

Overview

The Fluke P5513 pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost-effective instrument provides precise control for pressure calibration requirements and includes features found in Fluke's pneumatic deadweight testers. The bundle includes three reference pressure gauges with different measurement ranges, enabling calibration across a wider spectrum of pressure instruments. When combined with the 2700G Reference Pressure Gauges, it offers an easy-to-use alternative to traditional deadweight testers for comprehensive bench-top calibration solutions.

Key Features

• Pressure range: 0 to 3,000 psi (20 MPa)
• Screw press for fine pressure adjustments
• High-quality needle valves for precise control
• Test port adapters requiring no PTFE tape or wrenches
• High pressure pneumatic operation
• Three reference gauges with complementary ranges

Applications

• Calibrating dial gauges and Bourdon tube instruments
• Testing digital pressure gauges and electronic instruments
• Calibrating pressure transmitters and transducers
• Laboratory and bench-top pressure calibration across multiple ranges

Included Accessories

• P5513 Pneumatic Comparison Test Pump
• Protective lid
• Carrying case
• 1x 2700G-G20M Reference Gauge (0-3000 psi, ±0.02% FS uncertainty)
• 1x 2700G-BG7M Reference Gauge (0-3000 psi, ±0.02% FS uncertainty)
• 1x 2700G-BG700K Reference Gauge (-12 to 100 psi, ±0.02% FS uncertainty)
