Fluke FLUKE-754/154 BU Bundle with 754 Calibrator, Tablet, and HART Modem

Overview

The Fluke 754/154 BU bundle provides a comprehensive HART calibration solution by pairing the Fluke 754 documenting process calibrator with the Fluke 154 HART Calibration Assistant. This combination enables technicians to perform complete HART device configuration, maintenance, and troubleshooting from a convenient tablet interface with wireless connectivity, while maintaining full calibration capabilities for pressure, temperature, and electrical signals.

Key Features

Fluke 754 Calibrator

• Complete pressure, temperature, and mA loop calibration
• 24V loop power with simultaneous mA measurement
• Simultaneous source and measure of AC/DC voltage, mA, pressure, thermocouples, RTDs, frequency, and resistance
• Create and run automated procedures with as-found/as-left documentation
• Data logging capability (up to 8,000 readings)
• USB connectivity for integration with calibration management software

Fluke 154 HART Modem Assistant

• Full HART Device Description (DD) support for all HART devices
• Android tablet interface with FlukeHART mobile application
• Wireless connectivity to HART modem with extended range up to 250 feet
• Configure HART device parameters including trim, range, damping, and tag assignment
• Monitor device PV, SV, TV, QV and other measured HART variables in real-time
• Store and manage HART device configurations
• Paired operation allows remote configuration from safe or convenient locations

Applications

• Comprehensive HART transmitter calibration and configuration in process industries
• Field maintenance and troubleshooting of HART smart transmitters
• Automated documentation and compliance with quality standards
• Remote HART device configuration in confined or hazardous spaces

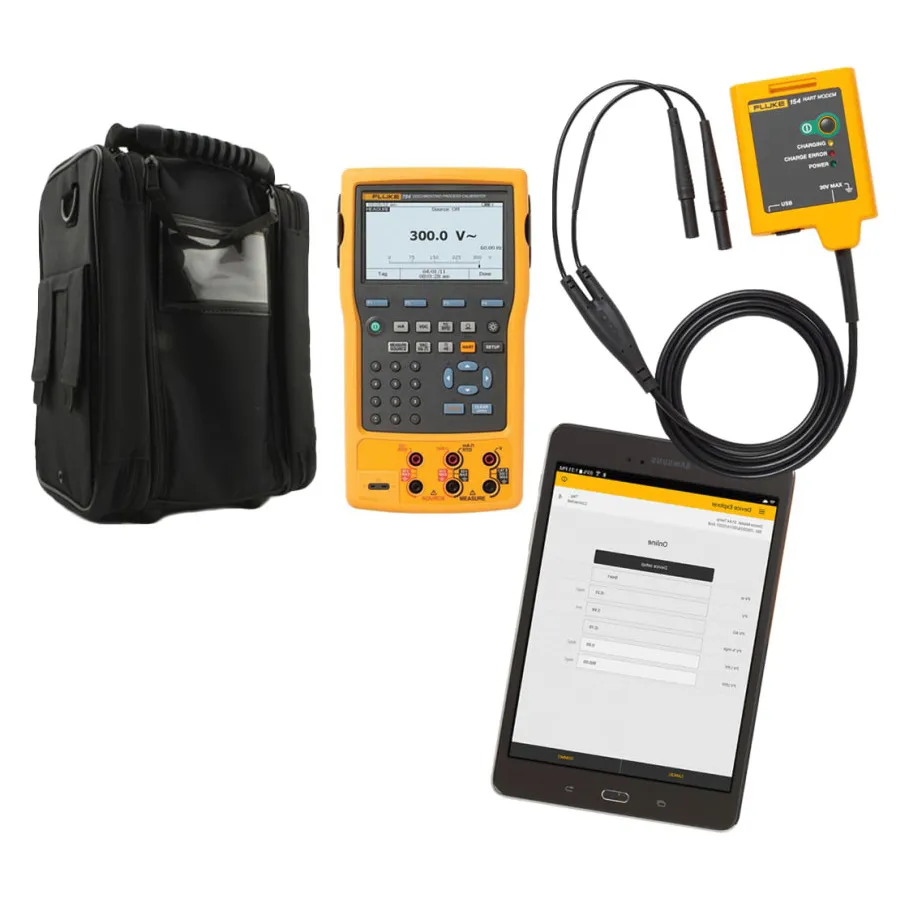

Included Accessories

• Fluke 754 Documenting Process Calibrator
• Android tablet with FlukeHART application
• Wireless HART modem
• Field soft carry case
