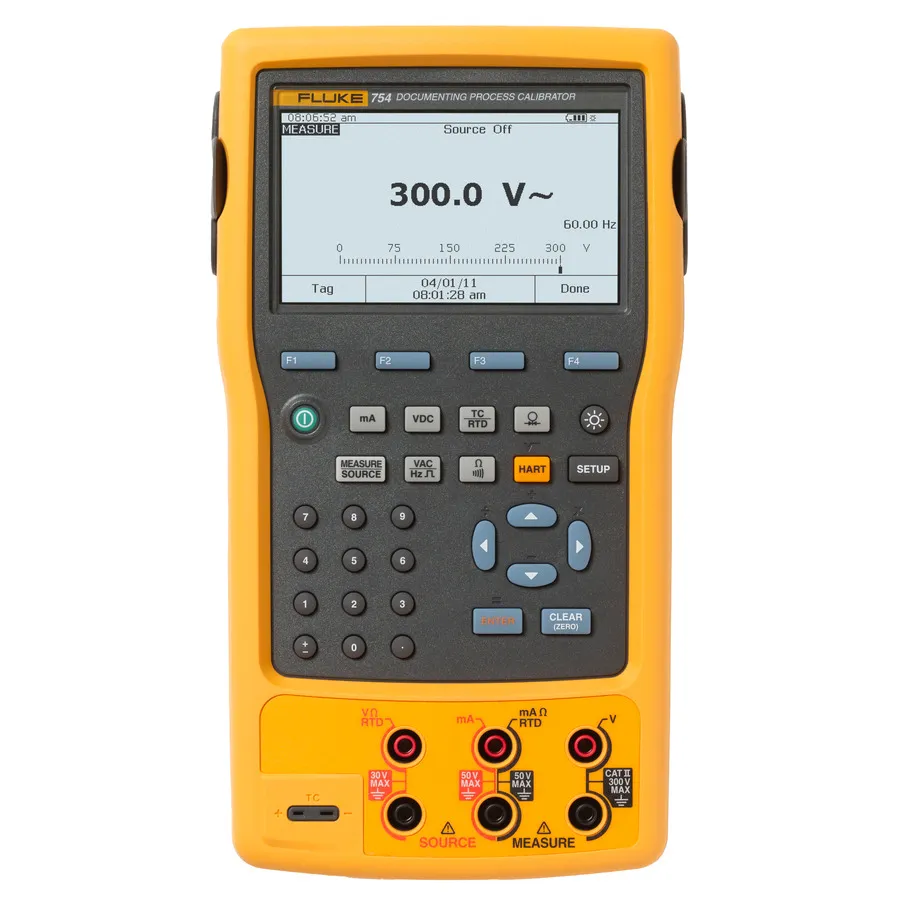

Fluke FLUKE-754 Documenting Process Calibrator with HART

Overview

The Fluke 754 is a rugged, handheld documenting process calibrator that combines sourcing, simulating, and measuring capabilities for pressure, temperature, and electrical signals in a single device. Its integrated HART interface eliminates the need for a separate communicator, allowing technicians to perform nearly all routine HART tasks, capture data for documentation, and ensure compliance with standards such as ISO 9000, FDA, EPA, and OSHA.

With simultaneous source and measure functionality, the 754 covers all common process parameters. The graphical display, long-lasting Li-ion battery, and USB port enable seamless PC connectivity for downloading procedures, uploading data for analysis, and integrating with instrumentation management software.

Key Features

• Built-in HART interface (30VDC input modem) for direct device communication without separate communicator
• Simultaneous source and measure of voltage, mA, thermocouples, RTDs, frequency, and ohms
• Pressure measurement compatible with Fluke 750P Series Pressure Modules
• 24V loop supply with simultaneous mA measurement for transmitter powering
• Automated as-found/as-left procedures with result documentation and data logging (up to 8,000 data points)
• Bright white dual display showing both sourced and measured parameters simultaneously
• Pulsed RTD handling with pulse widths as short as 1 ms for fast transmitters and PLCs
• Rechargeable Li-ion battery with 10-hour runtime plus direct AC power support
• USB connectivity for PC integration with calibration management software
• Compatible with asset management and DPCTrack 2 software packages
• 3-year warranty

Applications

• Calibrating and troubleshooting HART smart transmitters and sensors
• Streamlining workflow in process industries with routine pressure, temperature, and electrical signal calibration
• Field maintenance of instrumentation with automated documentation for compliance
• Configuring and monitoring HART device parameters including tag assignment and range adjustment

Included Accessories

• BC7240 battery charger
• Li-ion BP7240 battery pack
• Three sets of TP220 test probes
• Three sets of extended tooth alligator clips
• Two sets of AC280 hook clips
• C799 soft field case
• USB communication cable
• Fluke 754HCC HART communications cable
• DPCTrack 2 sample software
• NIST-traceable calibration report and data
