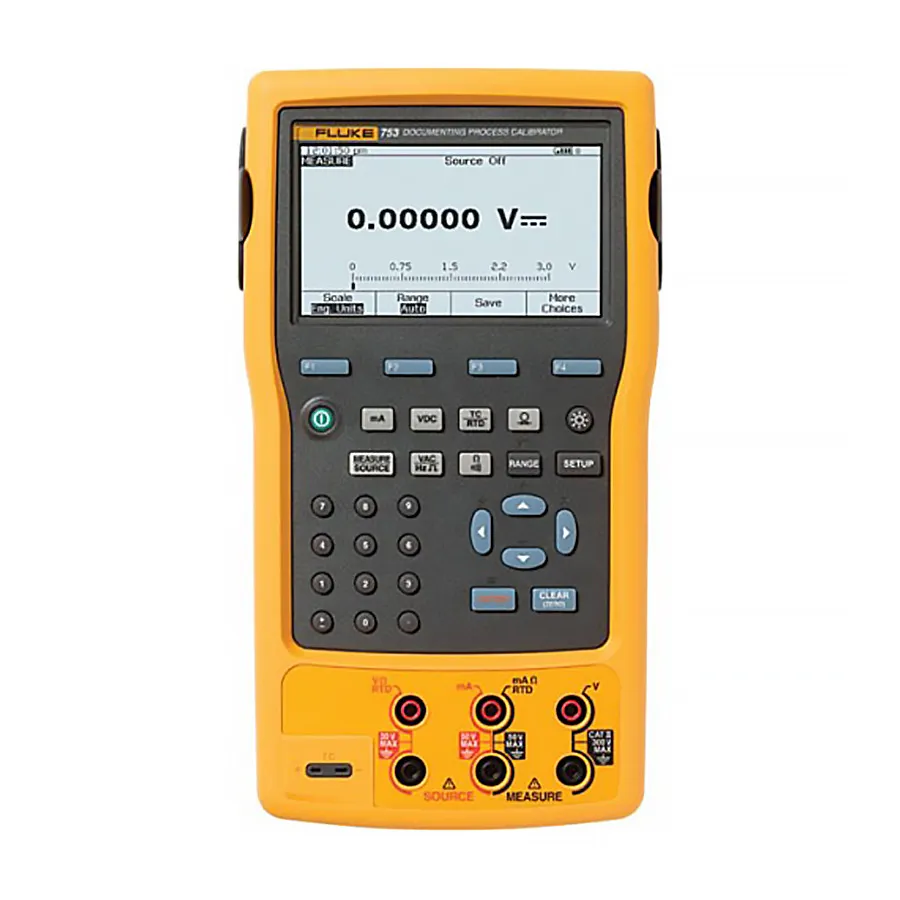

Fluke FLUKE-753 Documenting Process Calibrator

Overview

The Fluke FLUKE-753 is a handheld documenting process calibrator that measures and sources pressure, temperature, and electrical signals for testing, troubleshooting, and calibrating sensors, transmitters, and instrumentation. It combines simultaneous source and measure capabilities with automated procedures and data logging, helping users meet regulatory standards including ISO 9000, FDA, EPA, and OSHA requirements.

Key Features

• Measure and source volts, mA, RTDs, thermocouples, frequency, and resistance
• Measure/source pressure using any of 29 Fluke 700Pxx pressure modules
• Power transmitters with loop supply while simultaneously measuring mA
• Automated as-found/as-left procedures with pass/fail and tolerance calculations
• Record and document all calibration results for compliance verification
• Store up to a full week of downloaded procedures and calibration results
• Bright dual display shows sourced and measured parameters simultaneously
• Advanced features: autostep, custom units, one-point and two-point switching, square root DP flow testing, programmable delay
• Handle fast pulsed RTD transmitters with pulse widths as short as 1 ms
• Multi-lingual user interface
• Rechargeable Li-ion battery with gas gauge for up to 10 hours of operation
• Compatible with many asset management software packages and DPCTrack2 software
• Three-year manufacturer warranty

Applications

• Transmitter calibration and verification in process control systems
• Temperature and pressure measurement and simulation for field testing
• Equipment maintenance and troubleshooting in industrial settings
• Automation system verification and loop testing
• Compliance documentation for regulated environments

Included Accessories

• BC7240 battery charger
• Li-ion BP7240 battery pack
• DPCTrack 2 software with sample data
• Instruction manual
• NIST-traceable calibration report and certification data
• Three sets of TP220 test probes with alligator clips
• Two sets of AC280 hook clips
• C799 soft field carrying case
• USB communication cable
