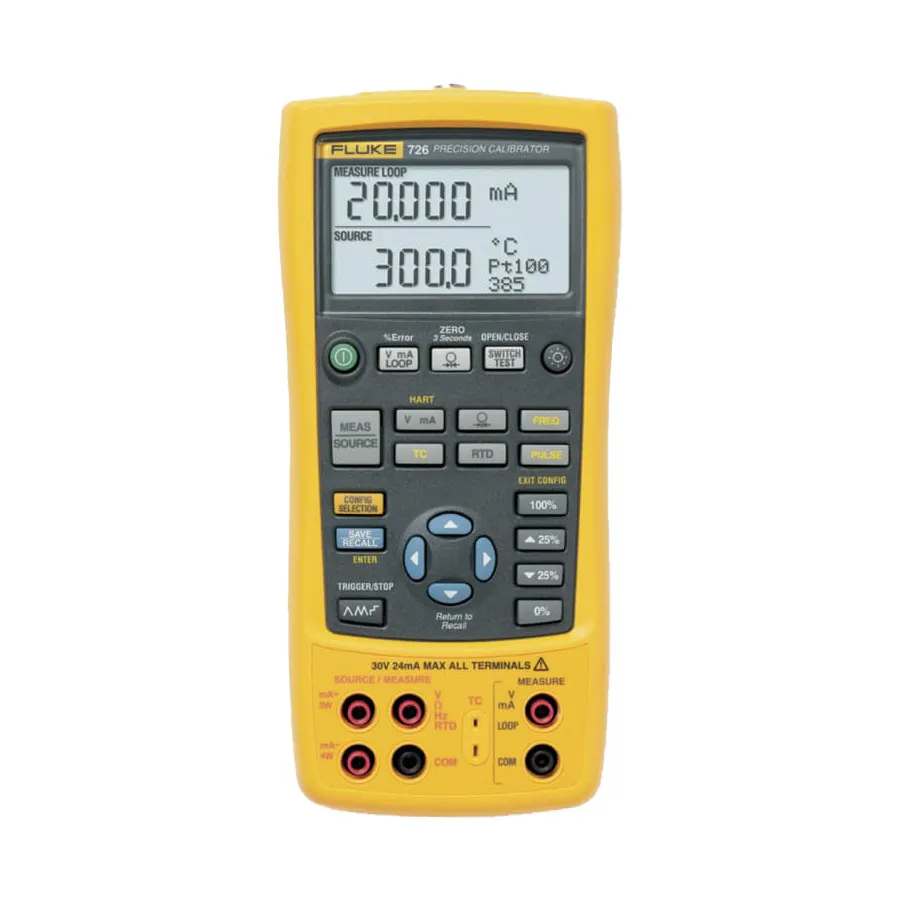

Fluke FLUKE-726 Precision Multifunction Process Calibrator

Overview

The Fluke FLUKE-726 is a precision multifunction process calibrator engineered for demanding calibration environments. With dual-channel capability, comprehensive measurement and sourcing functions, built-in HART communication support, and memory storage for calibration results, it provides the precision and versatility needed to test and calibrate virtually any process instrument or transmitter.

Key Features

• Precision multifunction calibrator for temperature, frequency, voltage, and current
• Dual-channel operation for simultaneous measurement, sourcing, and signal viewing
• Thermocouple types: E, J, K, T, B, R, S, L, U, N, C, XK, BP (13 types)
• Measures and sources RTD temperature instruments
• Frequency range: 2 CPM to 15 kHz
• Built-in 24 V loop power supply
• HART mode with 250-ohm resistor insertion for mA measurement and sourcing
• Memory storage for up to eight calibration results
• Integrated switch test for pressure switch capture (set, reset, deadband)
• Auto-step and auto-ramp linearity testing
• Backlit display for low-light operation
• Three-year standard warranty

Applications

• Temperature transmitter and sensor calibration
• Process control system validation and testing
• Pressure transmitter and switch verification with 750P series modules
• Flowmeter testing with frequency totalizer and pulse train sourcing
• HART-enabled device communication and calibration
• Industrial process instrument maintenance and certification

Included Accessories

• AC72 Alligator Clips
• Stackable test leads (pair)
• TL75 Test Leads (pair)
• NIST-traceable calibration report and data
• Quick Reference Guide
