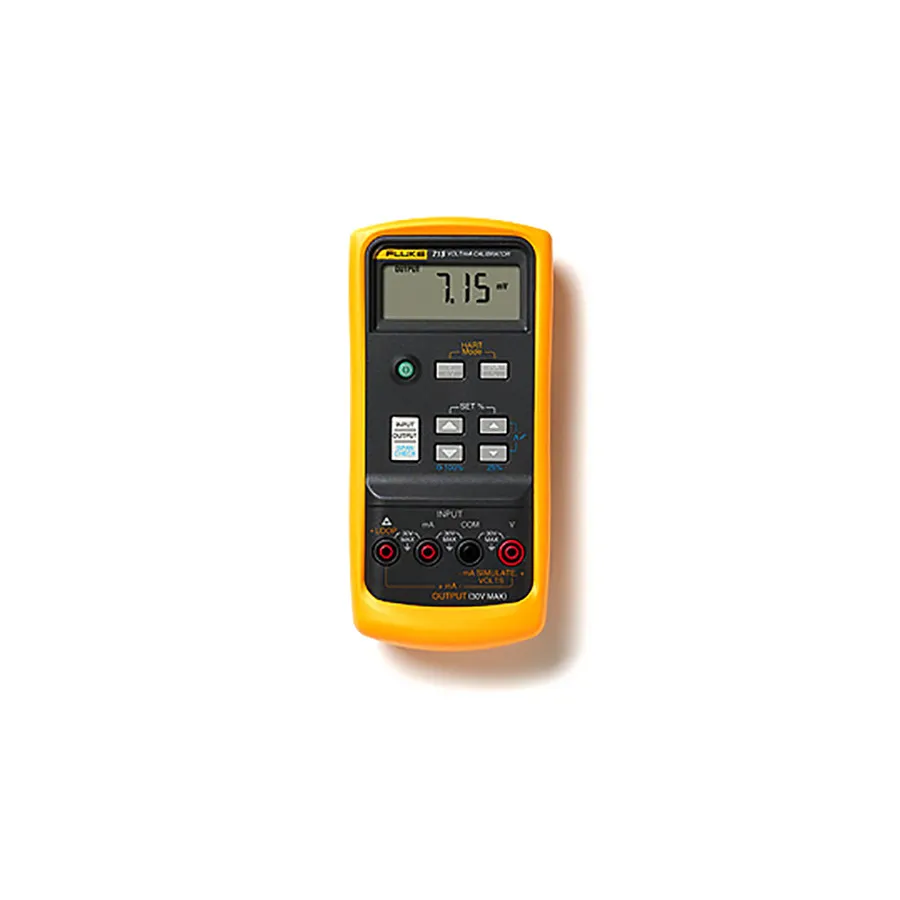

Fluke FLUKE-715 Volt/mA Calibrator
Request a quote
Fluke FLUKE-715 is a portable volt/mA calibrator with 0.015% accuracy, measuring and sourcing 4-20 mA loops and voltage signals.
Product details
| Model | FLUKE-715 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-715 Volt/mA Calibrator is a compact, portable instrument designed for field calibration of process instrumentation. It measures and sources voltage and current signals with high accuracy, making it ideal for technicians maintaining industrial control systems. The unit combines measurement and sourcing capabilities in a robust, EMI-resistant package.
Key Features
- Measure loop current (0-20 mA, 4-20 mA) with 0.015% accuracy and 1 mA resolution
- Measure voltage output process signals from PLCs and transmitters
- Source or simulate 24 mA loop current
- Source voltage to 100 mV or 10 V
- 24 V loop supply with simultaneous current measurement
- 250 ohm HART resistor with loop power
- Step and linear ramp output functions
- Configurable zero and span settings
- EMI, dust, and splash resistant design
- Holster with integrated test lead storage
- Compatible with Fluke ToolPack magnetic hanging system
Applications
- Process transmitter calibration and verification
- PLC analog input/output signal validation
- Control loop system testing and troubleshooting
- Field instrumentation maintenance and calibration
- HART communication device testing
Included Accessories
- Protective yellow holster with test lead storage
- Test leads and alligator clips
- Single 9 V alkaline battery
- Instructions sheet in 14 languages
Specifications
| Alternate Product Number | 620101 |
