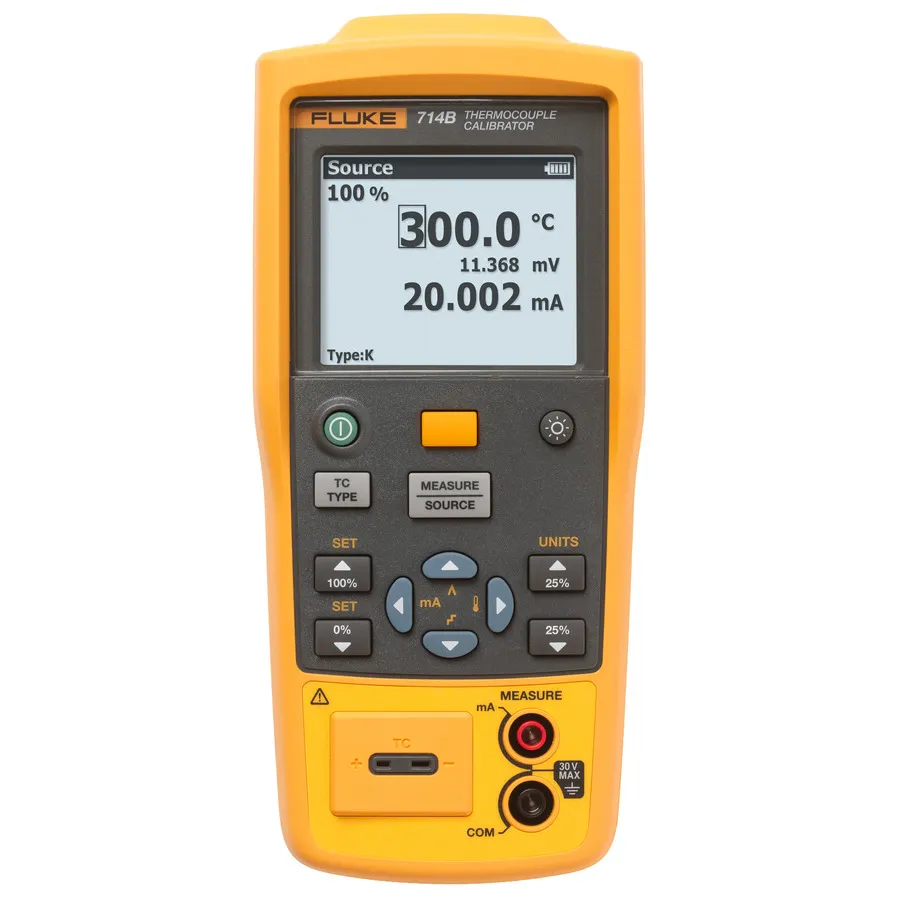

Fluke FLUKE-714B Thermocouple Calibrator

Overview

The Fluke FLUKE-714B Thermocouple Calibrator is a handheld, battery-operated instrument designed to measure and simulate a wide range of thermocouple types in field environments. It supports 17 standard thermocouple types including E, N, J, K, T, B, R, S, L, U, C, BP, XK, G, D, P, and M. The unit features an isolated 4-20 mA channel for simultaneous current loop measurements.

Key Features

• Supports 17 different thermocouple types and millivolt simulation
• Isolated 4-20 mA measurement channel for concurrent measurements
• Configurable 0% and 100% source settings for quick 25% linearity checks
• Linear ramp and 25% step auto ramp functions
• Dual inputs with backlit display for easy reading
• Power down settings remembered at power up for quick test restart
• Included hanging tool for hands-free operation
• Available with 1-year and 2-year calibration with traceable certification

Applications

• Thermocouple transmitter and gauge calibration
• Temperature indicator verification and testing
• Process control system temperature signal validation
• Field calibration of temperature measurement devices

Included Accessories

• AC175 alligator clips (1 set)
• TL75 test leads (1 set)
• TC cap for TC hole
• Mini standard TC plugs with 80 cm TC wire (Type K included)
• 4 AA alkaline batteries
• Magnetic hanging strap
• Safety sheet and quick reference guide
