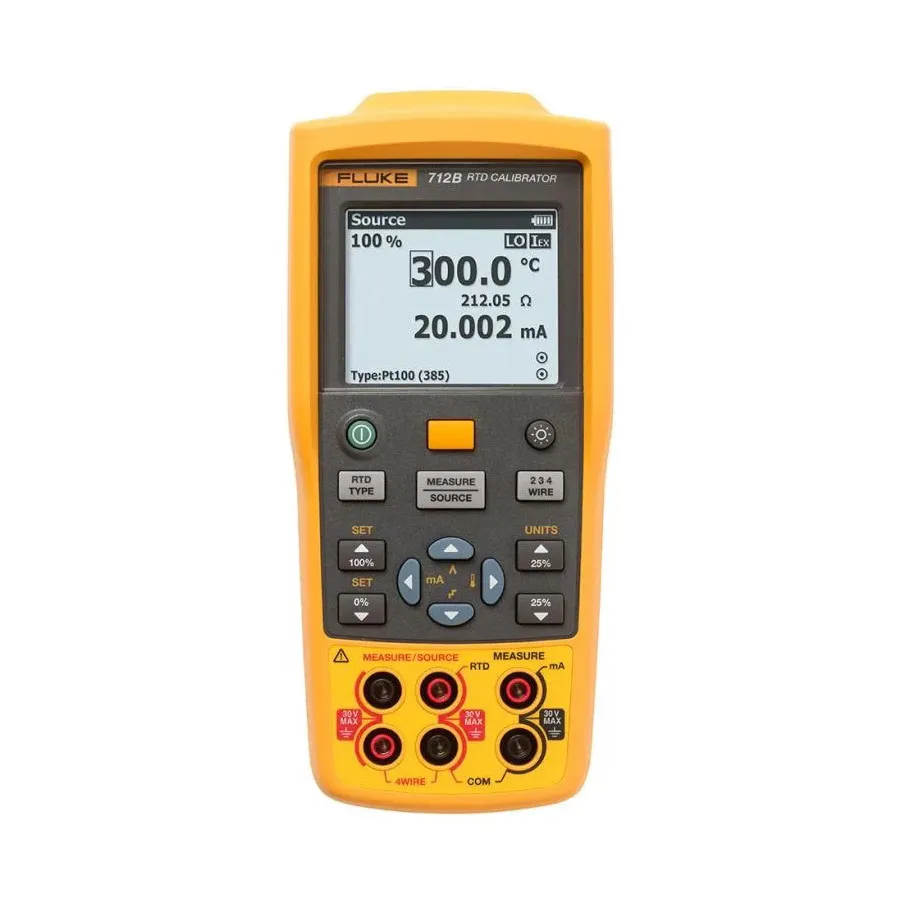

Fluke FLUKE-712B/EN RTD Calibrator
Request a quote
Fluke FLUKE-712B/EN RTD calibrator measures and simulates 13 RTD types and resistance values, offers dual input channels, and features configurable 0% and 100% source settings.
Product details
| Model | FLUKE-712B/EN |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 712B RTD Calibrator is a portable, battery-powered device for measuring and simulating resistance temperature detector (RTD) signals and 4-20 mA current loops. It features isolated dual inputs that allow simultaneous measurement of 4-20 mA signals while sourcing a temperature signal, making it ideal for field technicians calibrating temperature instrumentation.
Key Features
- Measures and simulates 13 different RTD types and resistance values
- Dual input channels for simultaneous 4-20 mA measurement and RTD source
- Resistance measurement and source range: 0 to 4000 ohms
- Configurable 0% and 100% source settings for fast 25% linearity checks
- Linear ramp and 25% step auto ramp functions
- Measurement range: 0-24 mA with 0.001 mA resolution
- Maximum voltage: 30 V DC
- IP52 rating for field durability
- Powered by four AA alkaline batteries
- Backlit display and memory retention when powered off
Applications
- Field calibration of RTD temperature sensors and transmitters
- Troubleshooting temperature measurement circuits
- Verification of temperature control loops
- Maintenance and testing of temperature instrumentation in process plants
Included Accessories
- Two AC175 alligator clip sets
- Two TL75 test lead sets
- 754-8016 alligator clip set
- Stackable test leads
- Four AA alkaline batteries
- Magnet Strap TPAK
- Safety information sheet
- Quick Reference Guide
Specifications
