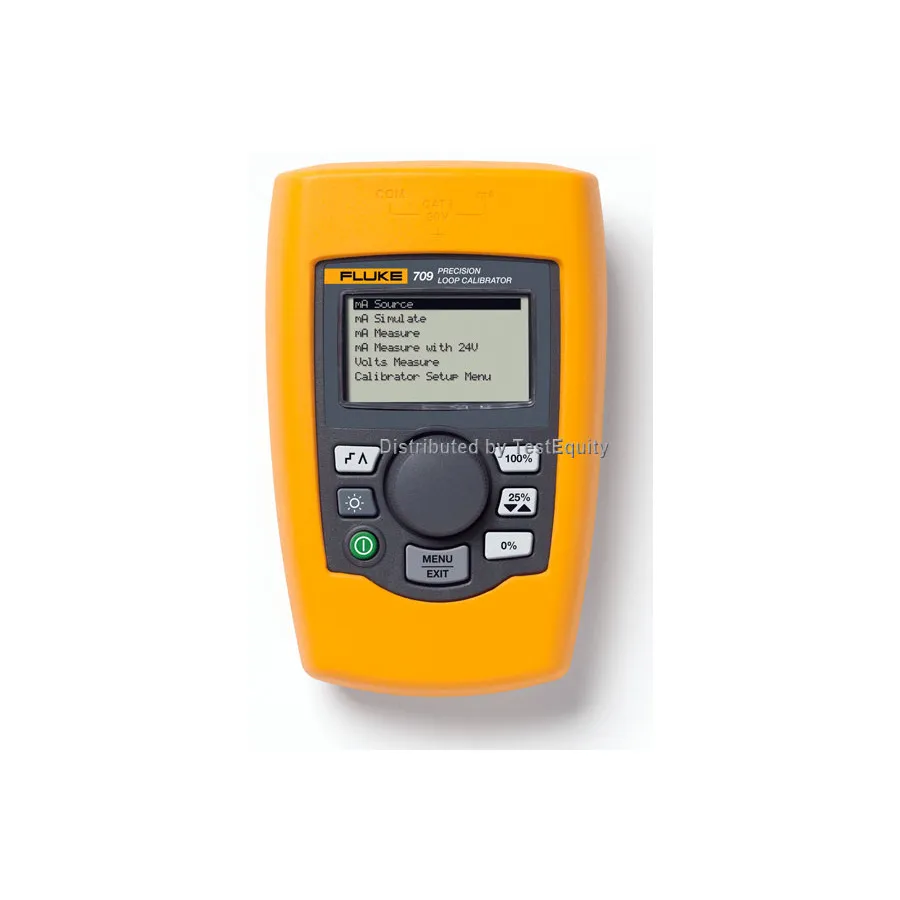

Fluke FLUKE-709 Current Loop Calibrator
Request a quote
Fluke FLUKE-709 current loop calibrator with 0.01% reading accuracy, HART modem, 24 V DC loop power, and ability to store up to 20 device configurations.
Product details
| Model | FLUKE-709 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 709 is a portable, battery-powered current loop calibrator designed for field technicians who need to measure and source 4-20 mA signals with high accuracy. With 0.01% reading accuracy and built-in HART modem support, it combines loop calibration with HART communication capabilities in a single compact tool.
Key Features
- 0.01% reading accuracy for measurement and source modes
- Built-in HART modem with 250 Ω resistor for HART communication
- 24 V DC loop power with mA measurement range of -25% to 125%
- 1 µA resolution on mA ranges and 1 mV on voltage ranges
- Quick-Set rotary encoder for fast setup and intuitive operation
- Valve test function with Good, Marginal, or Bad assessment
- Variable step and ramp time in seconds
- Adjustable span selection (0 to 20 mA or 4 to 20 mA)
- Stores up to 20 HART device configurations
- Battery-powered with six AAA batteries and auto-shutdown feature
- Three-year warranty
Applications
- Field calibration and troubleshooting of 4-20 mA current loops
- HART transmitter setup and diagnostics
- Control valve testing and performance evaluation
- Process instrumentation maintenance in industrial facilities
Included Accessories
- Two AC72 Alligator Clips
- TL75 Test Leads
- AC280 SureGrip Hook Clips
- Soft carrying case
- Six AAA batteries (installed)
- Product manual on CD-ROM
- Quick reference guide
- Safety information guide
- NIST traceable calibration certificate with data
Specifications
