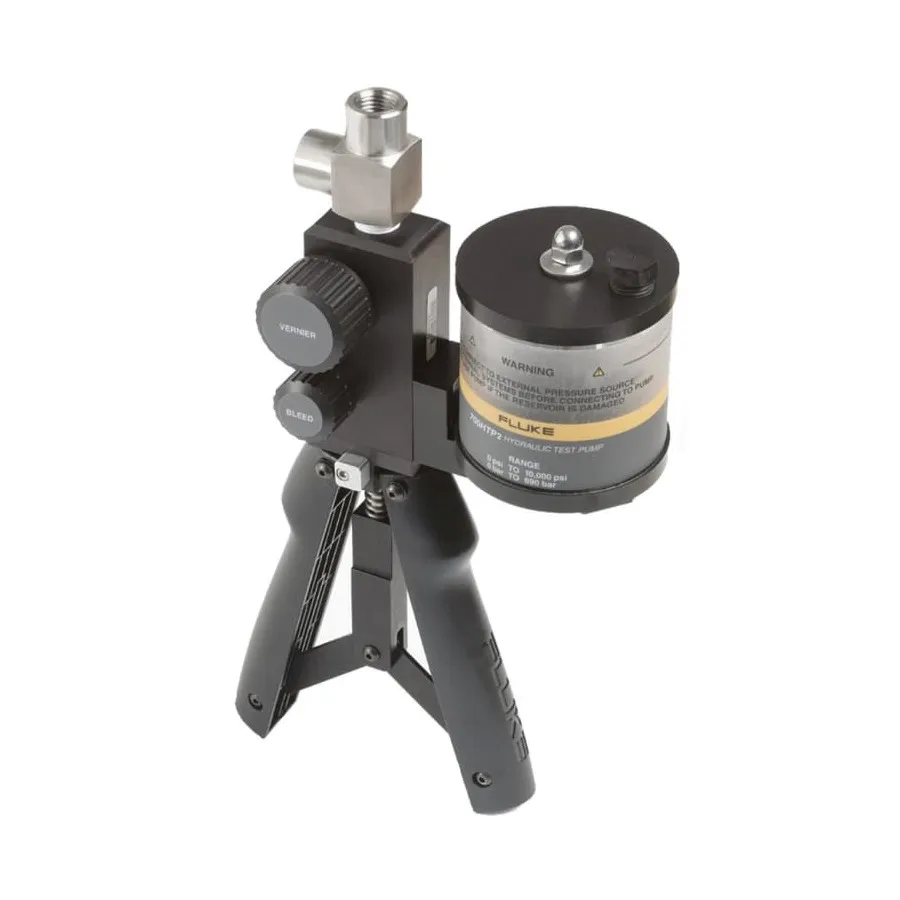

Fluke FLUKE-700HTP-2 Hydraulic Test Pump

Overview

The Fluke FLUKE-700HTP-2 is a manually operated hydraulic pressure pump engineered to produce calibration pressures up to 10,000 psi (690 bar). It is designed for use with the Fluke 750P series of high-pressure modules and Fluke 717 pressure calibrators, making it ideal for calibrating high-pressure input devices such as pressure transmitters and gauges using distilled water or mineral-based hydraulic oil.

Key Features

• Pressure range: 0 to 10,000 psi (690 bar)
• Variable stroke adjustment for flexible volume and pressure control
• Integral vernier knob for precise pressure adjustment
• Direct connection to pressure modules for consolidated calibration setup
• Two 1/4 in NPT ports (reference and UUT)
• Compatible with optional Fluke-700PRV-1 pressure relief valve for overpressure protection
• Compact dimensions: 9.5 in (241 mm) L × 6.1 in (155 mm) W × 2.6 in (66 mm) D
• Durable construction with stainless steel (303), aluminum, polyurethane, PTFE, nitrile, and nylon components

Applications

• Calibration of pressure transmitters and gauges
• High-pressure testing in laboratory and field environments
• Use with Fluke 750P09, 750P29, 750P30, and 750P31 modules
• Integration with Fluke 717 pressure calibrators

Included Accessories

• 700HTP-2 Hydraulic Test Pump (with 1/4-inch NPT tee installed)
• Two 1/4 in NPT male to 1/4 in BSP Female adapters
• 1/4 in NPT Tee
• Instruction sheet
