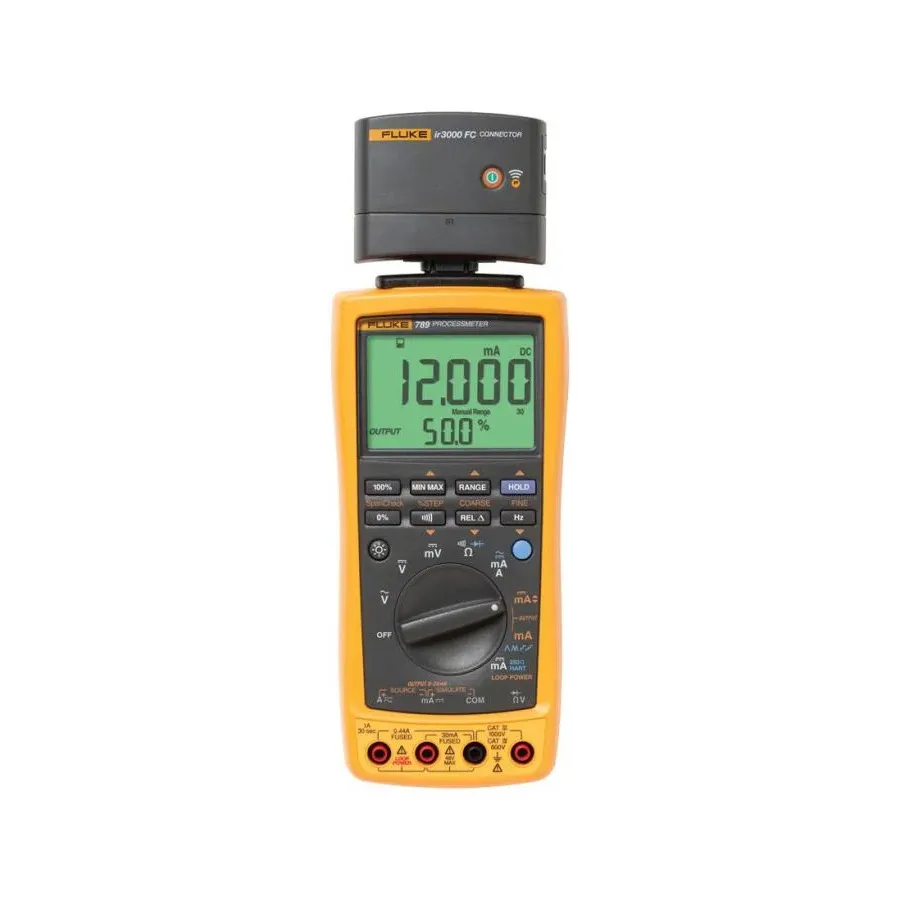

Fluke FLK-789/IR3000 BU Bundle: ProcessMeter with Fluke Connect

Overview

The Fluke FLK-789/IR3000 BU bundle combines the ProcessMeter 789 with the IR3000 FC wireless connector for real-time data logging and team collaboration. The ProcessMeter integrates the capabilities of a safety-rated 1000 V digital multimeter with 20 mA current source/measure/simulate functionality, while the IR3000 FC enables wireless data transfer to the Fluke Connect mobile and desktop applications for remote monitoring and documentation.

Key Features

• 789 ProcessMeter: 20 mA DC current source/measure/simulate with simultaneous mA and % of scale readout
• Precision 1000 V, 440 mA true-RMS digital multimeter (CAT IV 600 V / CAT III 1000 V)
• Frequency measurement to 20 kHz
• 24 V loop power supply and HART mode support
• Min/Max/Average/Hold/Relative measurement modes
• IR3000 FC Connector: Wireless data transfer to smartphones and tablets
• 2.4 GHz ISM Band RF communication with up to 20 m range
• Real-time measurement display capture and instant team sharing
• USB upgradeable firmware

Applications

• Remote monitoring and calibration of 4–20 mA loop systems
• Preventive maintenance with real-time data documentation
• Wireless field measurements for process control verification
• Collaborative troubleshooting with instant data sharing via Fluke Connect

Included Accessories

• 789 ProcessMeter
• IR3000 FC Wireless Connector
• AC175 Alligator Clips
• 4 × AA 1.5 V alkaline batteries (pre-installed)
• TL71 safety test lead set
