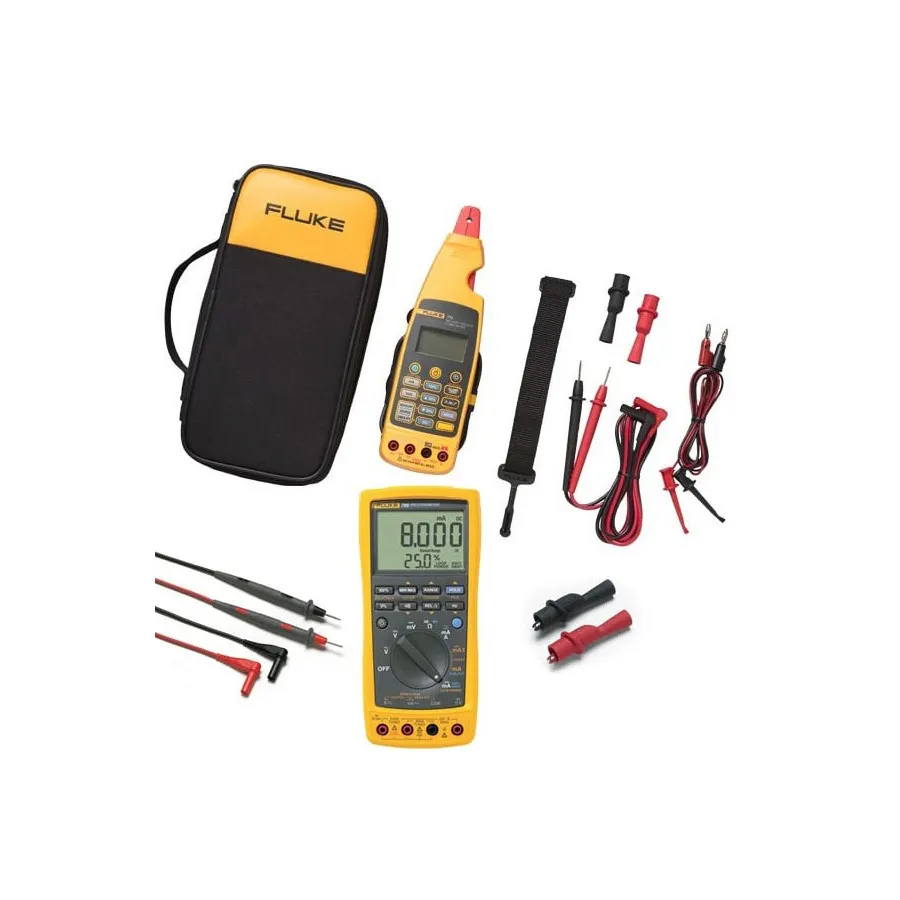

Fluke FLK-789/773 BU Bundle: ProcessMeter and Process Clamp Meter
Request a quote
Fluke FLK-789/773 bundle pairs the ProcessMeter (20 mA source/measure, 1000 V DMM) with Process Clamp Meter (0.2% accuracy) for comprehensive process loop calibration.
Product details
| Model | FLK-789/773 BU |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke FLK-789/773 BU is a comprehensive bundle combining the 789 ProcessMeter and 773 Process Clamp Meter. This combination provides tools for measuring, sourcing, and simulating 4–20 mA signals, as well as precision voltage and resistance measurements. The bundle is designed for troubleshooting and calibrating process control systems in manufacturing plants, utilities, and field service environments.
Key Features
- 789 ProcessMeter: 20 mA DC current source/measure/simulate with simultaneous mA and % of scale readout
- Precision 1000 V, 440 mA true-RMS digital multimeter (CAT IV 600 V / CAT III 1000 V)
- Frequency measurement to 20 kHz
- 24 V loop power supply and HART mode support
- Min/Max/Average/Hold/Relative measurement modes
- 773 Process Clamp Meter: Measures 4–20 mA signals without breaking the loop
- Best-in-class 0.2% accuracy with 0.01 mA resolution
- Detachable clamp jaw for remote measurements in confined spaces
- Non-contact measurement capability up to 99.0 mA
Applications
- Diagnosis and calibration of transmitters, valves, and PLCs in process plants
- Current loop troubleshooting without shutting down processes
- Voltage input/output verification for 1–5 V and 0–10 V signals
- Preventive maintenance of industrial control systems
Included Accessories
- 789 ProcessMeter
- 773 Process Clamp Meter
- Accessories and carrying case
Specifications
