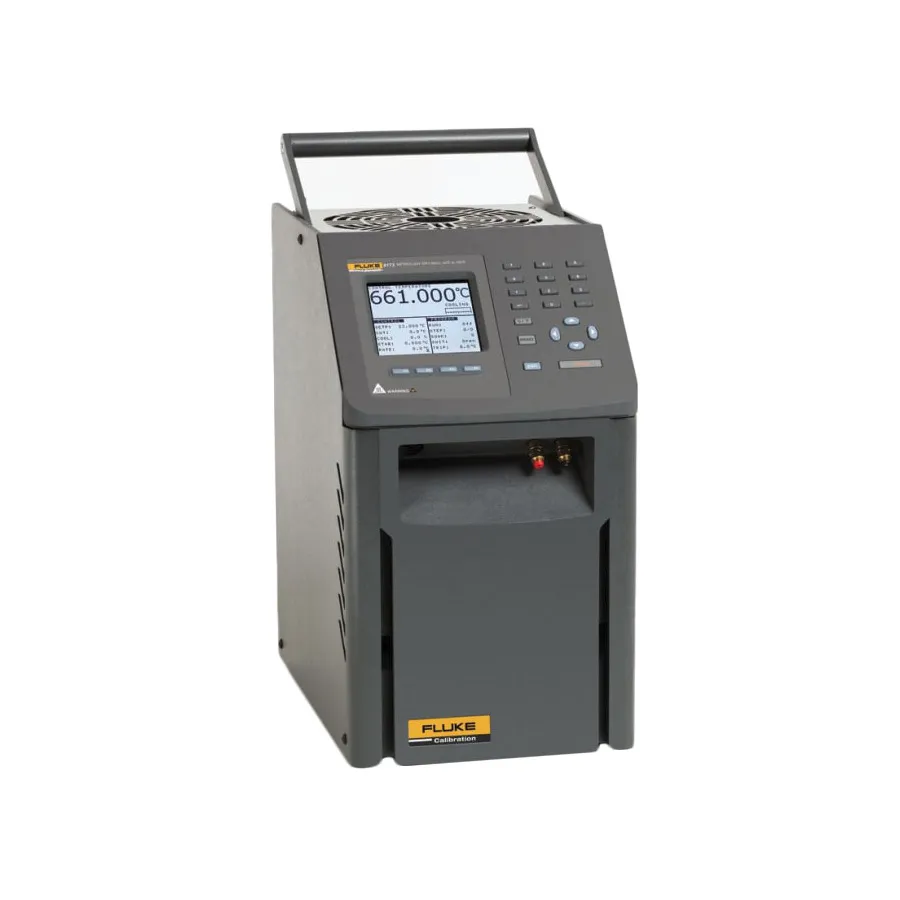

Fluke 9173-F-156 Metrology Well

Overview

The Fluke 9173-F-156 Metrology Well is a high-performance calibration tool designed for thermometers operating between 50°C and 700°C. With an immersion depth of 203 mm (8 inches) and display accuracy of ±0.25°C at 700°C, it dramatically reduces uncertainty budgets for high-temperature calibrations. This model features an Aluminium-Bronze Insert F for metric comparison holes.

Key Features

• Temperature range: 50°C to 700°C (122°F to 1292°F)
• Display accuracy: ±0.2°C at 425°C, ±0.25°C at 660°C
• Stability: ±0.005°C to 100°C, ±0.01°C to 425°C, ±0.03°C to 700°C
• Axial uniformity: ±0.1°C at 100°C, ±0.25°C at 425°C, ±0.4°C at 700°C
• Radial uniformity: ±0.01°C at 100°C, ±0.025°C at 425°C, ±0.04°C at 700°C
• Well depth: 203 mm (8 inches)
• Resolution: 0.001°C
• RS-232 serial interface for automated calibrations
• 8 temperature set points with ramp and soak times
• LCD display, selectable in °C or °F
• Insert F: Aluminium-Bronze with metric comparison holes

Applications

• High-temperature thermometer calibration
• RTD (Resistance Temperature Detector) calibration
• Thermocouple calibration
• Thermistor calibration
• Laboratory and field metrology work

Included Accessories

• 9173-F-156 Metrology Well with Insert F
• Power Cord
• RS-232 Cable
• Getting Started Guide
• User's Guide
• Report of Calibration and calibration label
• Tongs (insert removal tool)
• 9930 Interface-it Software and User's Guide
