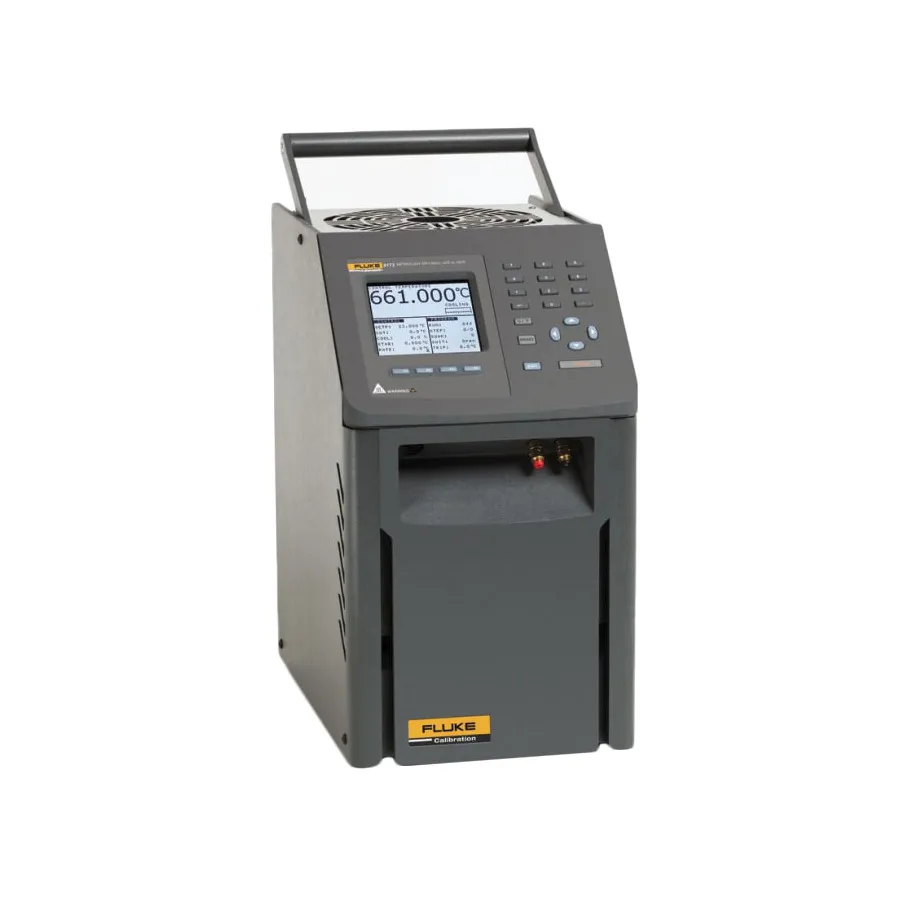

Fluke 9173-D-156 Metrology Well

Overview

The Fluke 9173-D-156 is a high-performance metrology well designed for precision calibration of thermometers from 50°C to 700°C. With display accuracy of ±0.25°C at 700°C and an immersion depth of 203 mm (8 inches), it minimizes temperature gradients and loading effects for meaningful calibration results. The unit features interchangeable Insert D with metric probe holes for compatibility with metric-sized temperature probes and sensors.

Key Features

• Temperature range: 50°C to 700°C (122°F to 1292°F)
• Display accuracy: ±0.2°C at 425°C; ±0.25°C at 660°C
• Stability: ±0.005°C to 100°C; ±0.01°C to 425°C; ±0.03°C to 700°C
• Axial uniformity: ±0.1°C at 100°C; ±0.25°C at 425°C; ±0.4°C at 700°C
• Radial uniformity: ±0.01°C at 100°C; ±0.025°C at 425°C; ±0.04°C at 700°C
• Well depth: 203 mm (8 inches)
• Resolution: 0.001°C
• LCD display with user-selectable °C or °F
• RS-232 serial interface for automated calibration
• Insert D: Aluminium-Bronze with metric holes (3mm, 4mm, 6mm)
• Eight temperature set points with ramp and soak times
• Automated switch test protocol

Applications

• RTD (Resistance Temperature Detector) calibration at high temperatures
• Thermocouple calibration with metric probe connectors
• Thermistor calibration and verification
• Temperature sensor characterization in laboratory and field settings

Included Accessories

• Power cord
• RS-232 cable
• Getting Started Guide and User's Guide
• Report of Calibration and calibration label
• Tongs (insert removal tool)
• 9930 Interface-it Software and User's Guide
