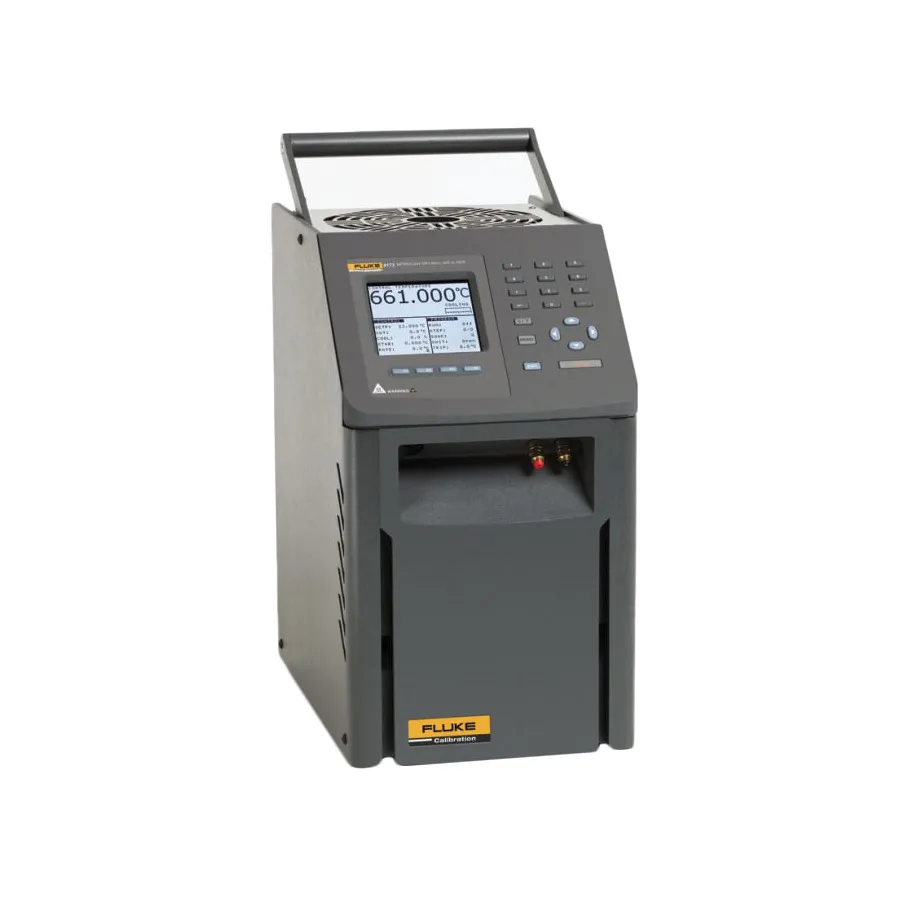

Fluke 9173-C-R-156 Metrology Well

Overview

The Fluke 9173-C-R-156 is a high-performance metrology well designed for calibrating thermometers operating between 50°C and 700°C. With an immersion depth of 203 mm (8 inches) and display accuracy of ±0.25°C at 700°C, it significantly reduces uncertainty budgets for high-temperature calibrations. The unit features built-in reference thermometer input using Fluke's Tweener technology, which accommodates 100-, 25-, and 10-ohm PRTs and provides accurate readings from ±0.006°C at 0°C to ±0.027°C at 661°C.

Key Features

• Temperature range: 50°C to 700°C (122°F to 1292°F)
• Display accuracy: ±0.2°C at 425°C; ±0.25°C at 660°C
• Stability: ±0.005°C to 100°C; ±0.01°C to 425°C; ±0.03°C to 700°C
• Axial uniformity (60 mm): ±0.1°C at 100°C; ±0.25°C at 425°C; ±0.4°C at 700°C
• Radial uniformity: ±0.01°C at 100°C; ±0.025°C at 425°C; ±0.04°C at 700°C
• Well depth: 203 mm (8 inches)
• Resolution: 0.001°C
• LCD display with user-selectable °C or °F
• RS-232 serial interface for automated calibration
• Built-in reference thermometer input with Tweener technology
• Insert C: Aluminium-Bronze with 0.25-inch holes (6x)
• Eight temperature set points with ramp and soak times
• Automated switch test protocol

Applications

• RTD (Resistance Temperature Detector) calibration at high temperatures
• Thermocouple calibration in industrial and laboratory environments
• Thermistor calibration and verification
• Temperature sensor verification and characterization

Included Accessories

• Power cord
• RS-232 cable
• Getting Started Guide and User's Guide
• Report of Calibration and calibration label
• Tongs (insert removal tool)
• 9930 Interface-it Software and User's Guide
