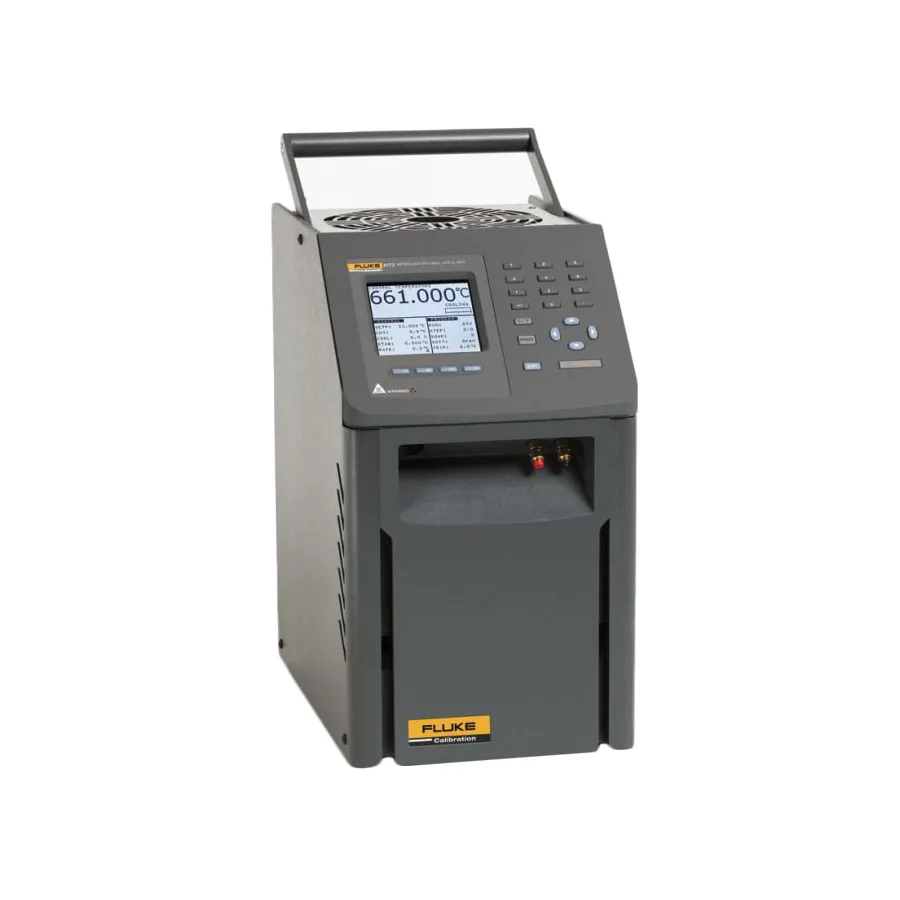

Fluke 9173-B-156 Metrology Well
Request a quote
Fluke 9173-B-156 temperature metrology well for calibrating thermometers from 50°C to 700°C with ±0.25°C display accuracy and superior thermal performance.
Product details
| Model | 9173-B-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9173-B-156 is a precision metrology well designed for high-temperature calibration work from 50°C to 700°C. With 203 mm (8 in) immersion depth and excellent thermal uniformity, it provides reliable calibration of temperature sensors and thermometers across the extended temperature range. Built with traceable PRT standards and Fluke's proprietary electronics, it minimizes temperature gradients and loading effects for accurate, repeatable results.
Key Features
- Temperature range: 50°C to 700°C with uniform thermal performance
- Display accuracy: ±0.2°C at 425°C, ±0.25°C at 660°C
- Excellent stability: ±0.005°C to ±0.03°C depending on temperature
- Multiple uniformity ratings for confidence in calibration data
- Eight programmable temperature set points with ramp and soak timing
- RS-232 interface compatible with automated software
- Interchangeable insert sleeves for different probe diameters
- LCD display with selectable Celsius or Fahrenheit
Applications
- Calibration of RTDs, thermocouples, and thermistors
- Laboratory and field temperature sensor verification
- Industrial process control system calibration
- High-temperature instrumentation testing and validation
Included Accessories
- Insert B (aluminum-bronze with comparison holes: 3/8", 1/4", 3/16")
- Power cord and RS-232 cable
- Insert removal tool (tongs)
- Getting Started Guide and User's Guide
- Report of Calibration and calibration label
- 9930 Interface-it Software and User's Guide
Specifications
| Series | 9170 Series |
