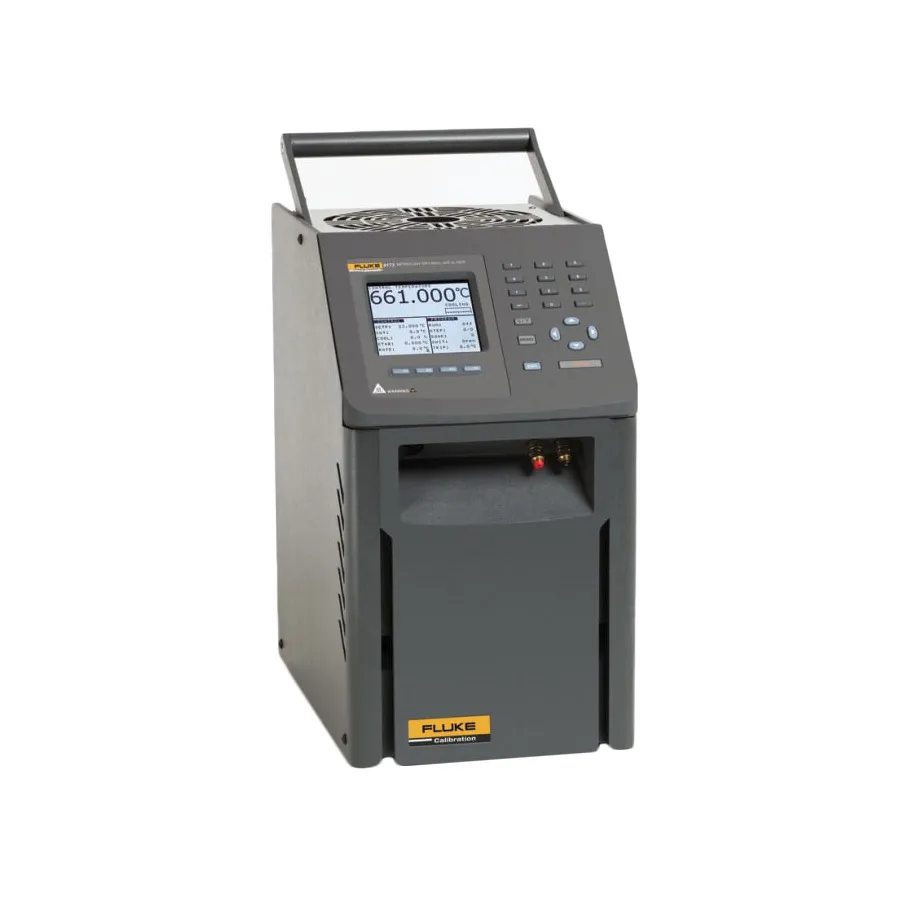

Fluke 9173-A-156 Metrology Well Calibrator

Overview

The Fluke 9173-A-156 is a precision metrology well configured with an aluminum-bronze Insert A, designed for high-temperature calibration of thermometers, RTDs, thermocouples, and thermistors. It minimizes temperature gradients, loading effects, and hysteresis while delivering exceptional display accuracy of ±0.25°C at 700°C. The Insert A features multiple probe hole sizes (3/16", 1/8", 1/4", and 3/8") to accommodate various probe diameters.

Key Features

• Temperature range: 50°C to 700°C (122°F to 1292°F)
• Display accuracy: ±0.2°C at 425°C; ±0.25°C at 700°C
• Axial uniformity (60 mm): ±0.1°C at 100°C; ±0.25°C at 425°C; ±0.4°C at 700°C
• Radial uniformity: ±0.01°C at 100°C; ±0.025°C at 425°C; ±0.04°C at 700°C
• Outstanding stability: ±0.005°C to 100°C; ±0.01°C to 425°C; ±0.03°C to 700°C
• Well depth: 203 mm (8 inches)
• Resolution: 0.001°C
• Insert A: Aluminum-bronze with probe holes 3/16", 1/8", 1/4" (×3), 3/8"
• LCD display with °C/°F selection
• RS-232 serial interface with automated control capability
• Eight temperature set points with ramp and soak times
• Automated switch test protocol
• Compatible with Fluke 9938 MET/TEMP II software

Applications

• Precision laboratory thermometer calibration
• Field calibration of high-temperature sensors
• RTD, thermocouple, and thermistor verification
• Metrology laboratory reference standards and traceability

Included Accessories

• 9173-A-156 metrology well with Insert A
• Power cord
• RS-232 cable
• Tongs (insert removal tool)
• Report of calibration with calibration label
• 9930 Interface-it software and user's guide
• Getting started guide
• User's manual
