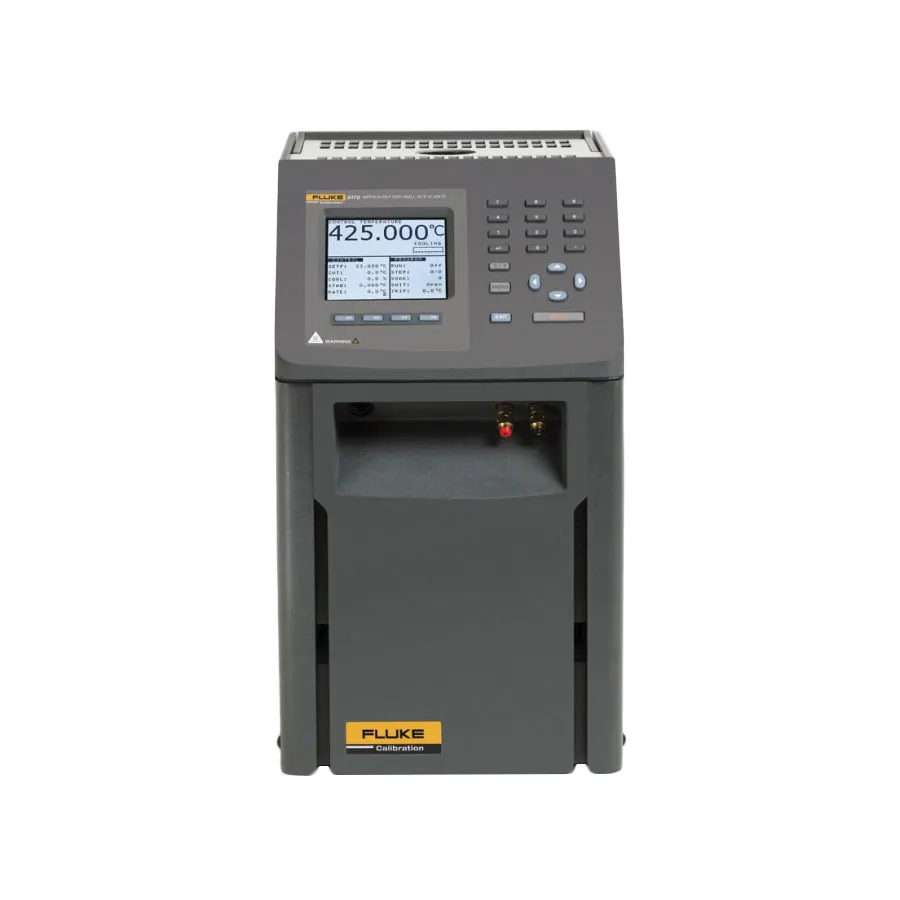

Fluke 9172-F-156 Metrology Well
Request a quote
Fluke 9172-F-156 is a precision temperature calibration well covering 35–425°C with ±0.2°C accuracy, 203 mm immersion depth, and RS-232 control for automated calibrations.
Product details
| Model | 9172-F-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9172-F-156 is a precision temperature metrology well designed for calibration of temperature sensors and instruments. It provides stable, accurate heat sources suitable for both laboratory and field use, with a temperature range from 35°C to 425°C and exceptional accuracy to ±0.2°C at 425°C. The 203 mm immersion depth significantly reduces stem conduction errors at high temperatures.
Key Features
- Temperature range: 35°C to 425°C
- Display accuracy: ±0.1°C at 100°C, ±0.15°C at 225°C, ±0.2°C at 425°C
- Stability: ±0.005°C to 100°C, ±0.008°C to 225°C, ±0.01°C to 425°C
- Immersion depth: 203 mm (8 inches)
- Resolution: 0.001°C
- LCD display with selectable °C or °F
- RS-232 serial interface for automated calibrations
- 8 temperature set points with ramp and soak capability
- Insert F: Brass with metric comparison holes (3mm×2, 4mm×2, 6mm×1)
Applications
- Calibration of RTDs (Resistance Temperature Detectors)
- Thermocouple calibration and verification
- Thermistor testing and calibration
- Temperature sensor accuracy validation
- Laboratory and field-based metrology work
Included Accessories
- Insert F (brass with metric comparison holes)
- Power cord
- RS-232 cable
- Tongs (insert removal tool)
- 9930 Interface-it Software and User's Guide
- Getting Started Guide and User's Guide
- Report of Calibration and calibration label
Specifications
| Series | 9170 Series |
