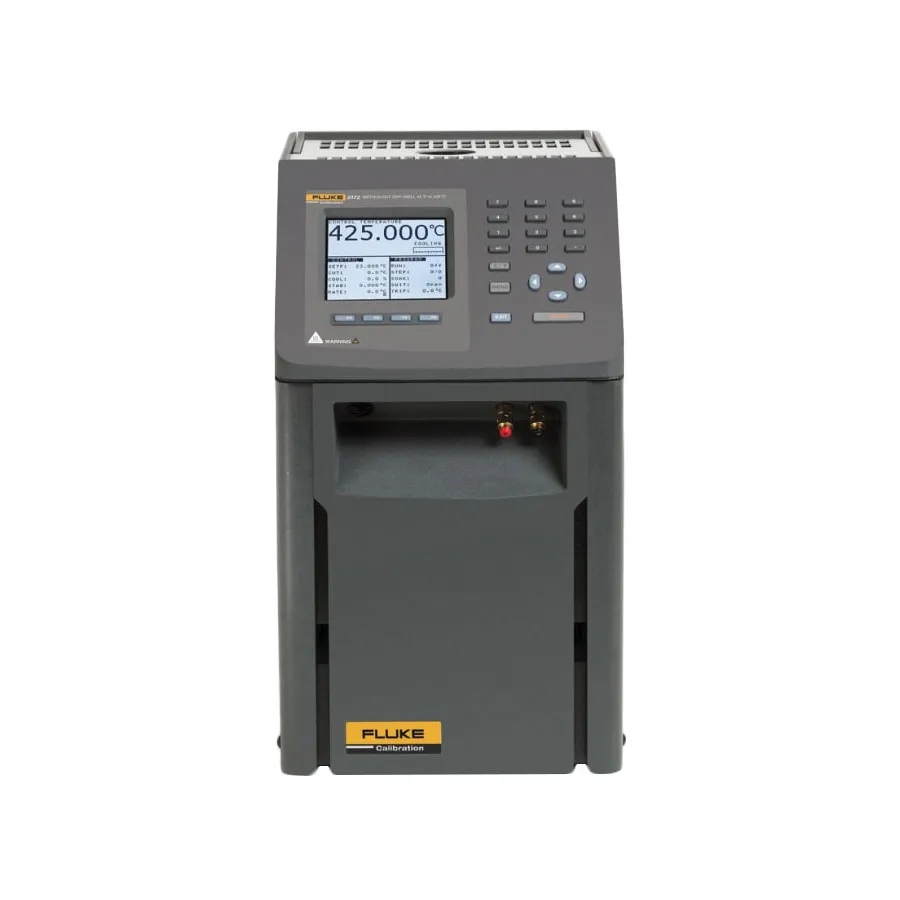

Fluke 9172-DW-R-156 Metrology Well
Request a quote
Fluke 9172-DW-R-156 metrology well calibrator with 35°C to 425°C range, ±0.2°C accuracy, built-in reference input, and 203 mm immersion depth for precise temperature sensor calibration.
Product details
| Model | 9172-DW-R-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9172-DW-R-156 is a precision metrology well designed for temperature calibration in laboratory and field environments. It provides temperatures from 35°C to 425°C with exceptional accuracy and outstanding stability. The 203 mm immersion depth significantly reduces stem conduction errors at high temperatures, making it ideal for calibrating RTDs, thermocouples, and thermistors with integrated reference thermometry.
Key Features
- Temperature range: 35°C to 425°C
- Display accuracy: ±0.2°C at 425°C
- Stability: ±0.01°C at 425°C
- Axial uniformity: ±0.2°C at 425°C
- Radial uniformity: ±0.025°C at 425°C
- Immersion depth: 203 mm (8 in)
- Resolution: 0.001°C
- LCD display with selectable °C or °F
- Built-in reference input for 100-, 25-, and 10-ohm PRTs
- RS-232 serial interface for automated control
- 8 temperature set points with ramp and soak times
- Automated switch test protocol
Applications
- Calibration of RTD temperature sensors in laboratory and field settings
- Thermocouple calibration and verification
- Thermistor testing and validation
- Automated calibration workflows with 9938 MET/TEMP II software
Included Accessories
- Power cord
- RS-232 cable
- Getting Started Guide
- User's Guide
- Report of Calibration and calibration label
- Tongs (insert removal tool)
- 9930 Interface-it Software and User's Guide
Specifications
| Series | 9170 Series |
