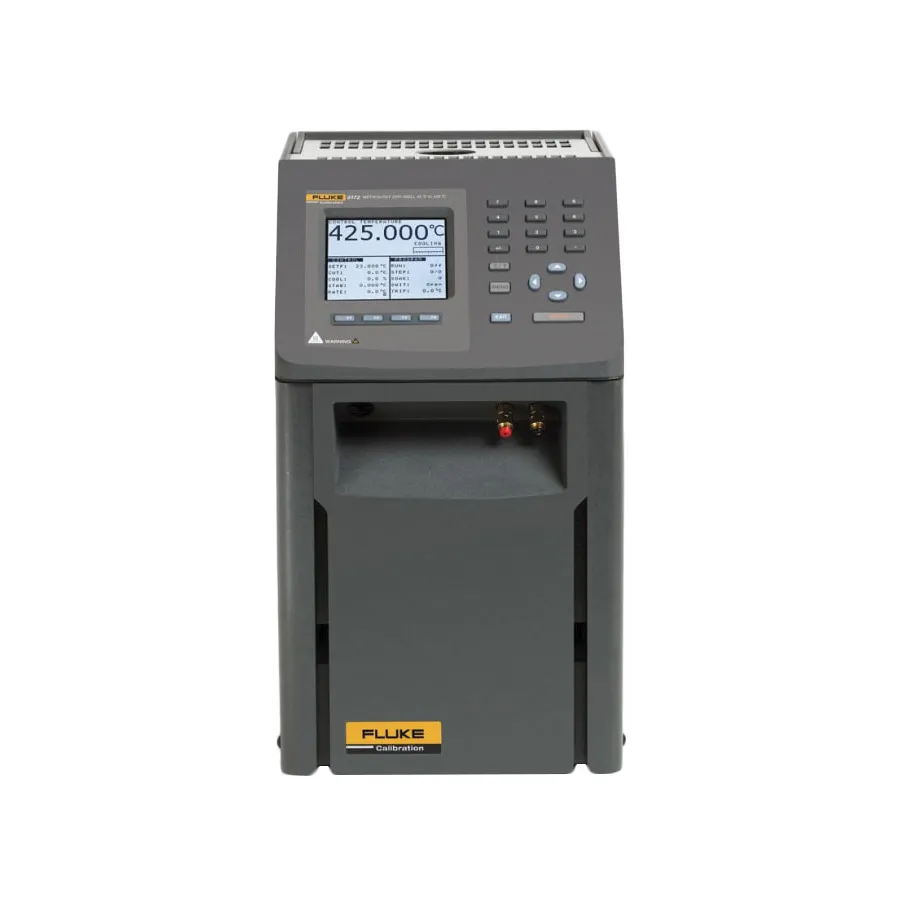

Fluke 9172-DW-156 Metrology Well

Overview

The Fluke 9172-DW-156 is a laboratory metrology well designed for precision temperature calibration without a pre-installed insert. It provides temperatures from 35°C to 425°C with a calibrated display accurate to ±0.2°C at 425°C. With 203 mm (8 in) of immersion depth, the 9172 significantly reduces stem conduction errors at high temperatures. The unit features exceptional stability of ±0.01°C and minimal temperature gradients, making it ideal for calibrating RTDs, thermocouples, and thermistors in laboratory and field environments.

Key Features

• Temperature range: 35°C to 425°C (95°F to 797°F)
• Display accuracy: ±0.1°C at 100°C, ±0.15°C at 225°C, ±0.2°C at 425°C
• Stability: ±0.005°C to 100°C, ±0.008°C to 225°C, ±0.01°C to 425°C
• Axial uniformity: ±0.05°C at 100°C, ±0.1°C at 225°C, ±0.2°C at 425°C
• Radial uniformity: ±0.01°C at 100°C, ±0.02°C at 225°C, ±0.025°C at 425°C
• Well depth: 203 mm (8 in)
• Resolution: 0.001°C
• LCD display with selectable C or F
• RS-232 serial interface for automated calibration
• 8 temperature set points with ramp and soak times
• Automated switch test protocol
• No insert included — allows flexibility for custom or standard inserts

Applications

• Calibration of RTD temperature sensors
• Calibration of thermocouple sensors
• Calibration of thermistor sensors
• Laboratory and field temperature metrology
• Temperature probe validation and testing

Included Accessories

• Power Cord
• RS-232 Cable
• Getting Started Guide
• User's Guide
• Report of Calibration and calibration label
• Tongs (insert removal tool)
• 9930 Interface-it Software and User's Guide
