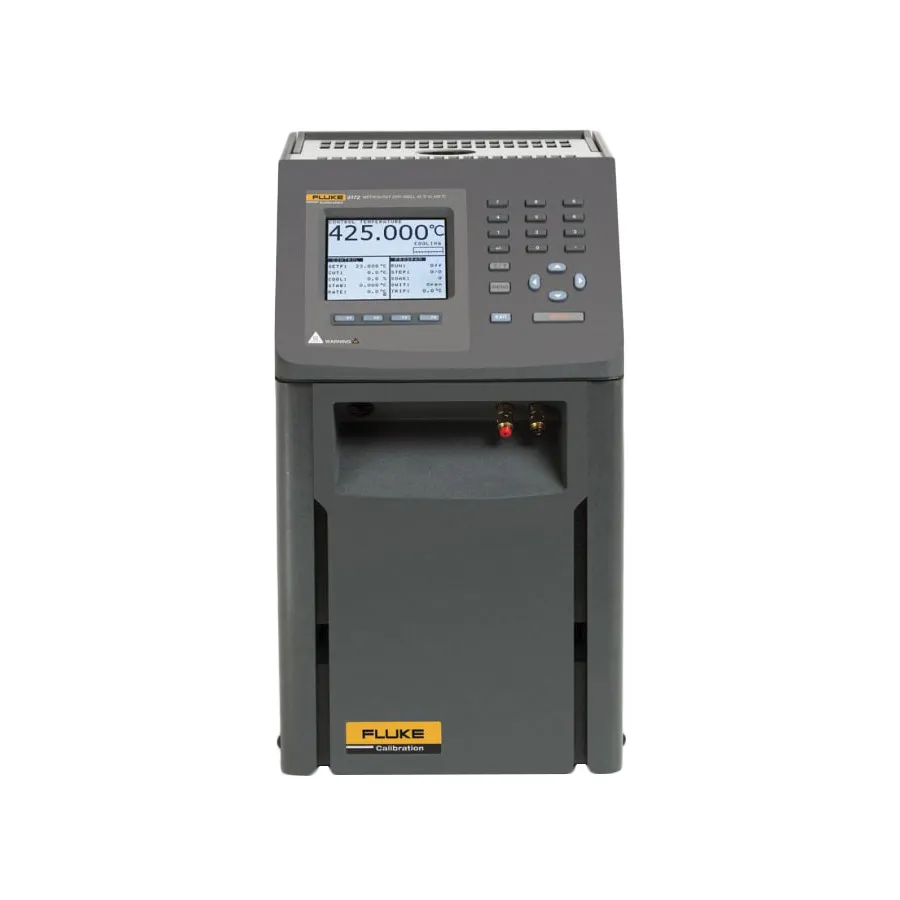

Fluke 9172-D-R-156 Metrology Well

Overview

The Fluke 9172-D-R-156 is a laboratory metrology well with integrated reference thermometry for precision temperature calibration and measurement. It provides temperatures from 35°C to 425°C with a calibrated display accurate to ±0.2°C at 425°C. With 203 mm (8 in) of immersion depth and built-in Tweener reference measurement electronics, the 9172-D-R-156 significantly reduces stem conduction errors while enabling direct PRT readout with ITS-90 characterization coefficients.

Key Features

• Temperature range: 35°C to 425°C (95°F to 797°F)
• Display accuracy: ±0.1°C at 100°C, ±0.15°C at 225°C, ±0.2°C at 425°C
• Stability: ±0.005°C to 100°C, ±0.008°C to 225°C, ±0.01°C to 425°C
• Axial uniformity: ±0.05°C at 100°C, ±0.1°C at 225°C, ±0.2°C at 425°C
• Radial uniformity: ±0.01°C at 100°C, ±0.02°C at 225°C, ±0.025°C at 425°C
• Well depth: 203 mm (8 in)
• Resolution: 0.001°C
• LCD display with selectable C or F
• Built-in reference input accepts 100-, 25-, and 10-ohm PRTs
• Reference measurement accuracy: ±0.006°C at 0°C to ±0.027°C at 661°C (probe errors excluded)
• RS-232 serial interface for automated calibration
• 8 temperature set points with ramp and soak times
• Automated switch test protocol
• Insert D: Brass with 3 mm, 4 mm, and 6 mm metric comparison holes

Applications

• Calibration of RTD temperature sensors with reference thermometry
• Calibration of thermocouple sensors
• Calibration of thermistor sensors
• Reference standard temperature metrology
• High-precision laboratory temperature measurements

Included Accessories

• Power Cord
• RS-232 Cable
• Getting Started Guide
• User's Guide
• Report of Calibration and calibration label
• Tongs (insert removal tool)
• 9930 Interface-it Software and User's Guide
