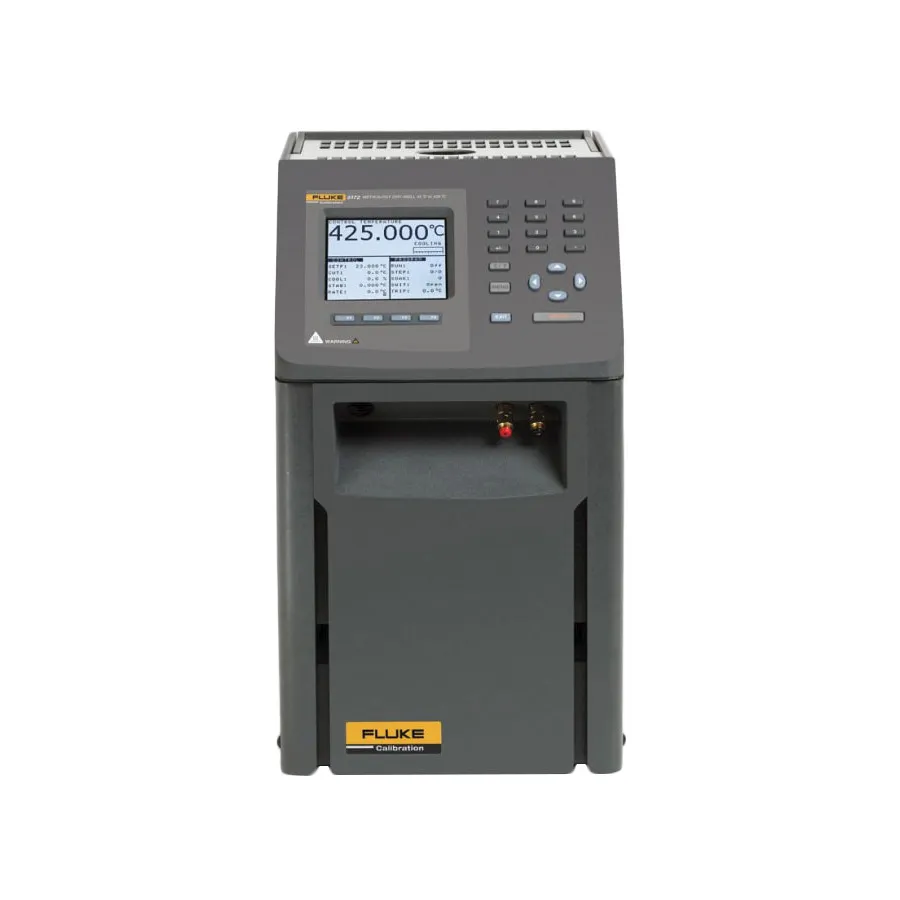

Fluke 9172-C-156 Metrology Well
Request a quote
Fluke 9172-C-156 is a high-accuracy dry block metrology well for temperature calibration, offering ±0.2°C accuracy at 425°C with 8-inch immersion and RS-232 interface.
Product details
| Model | 9172-C-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9172-C-156 Metrology Well is a precision dry block calibrator designed for accurate temperature measurement and sensor calibration. Featuring a 203 mm (8 in) immersion depth and superior temperature uniformity, it serves as a reliable reference standard for laboratory and field calibration work. The well accommodates various probe diameters through interchangeable brass inserts.
Key Features
- Temperature range: 35°C to 425°C (95°F to 797°F)
- Display accuracy: ±0.1°C at 100°C, ±0.15°C at 225°C, ±0.2°C at 425°C
- Stability: ±0.005°C to ±0.01°C depending on temperature
- Axial uniformity (60 mm): ±0.05°C at 100°C, ±0.1°C at 225°C, ±0.2°C at 425°C
- Radial uniformity: ±0.01°C at 100°C, ±0.02°C at 225°C, ±0.025°C at 425°C
- LCD display with selectable °C or °F
- RS-232 serial interface with automated protocols
- Eight temperature set points with ramp and soak capability
- Automated switch test protocol
- Insert C: Brass with 0.25-inch holes (x6)
Applications
- RTD, thermocouple, and thermistor calibration
- Industrial temperature sensor validation
- Laboratory and field calibration standards
- Process measurement equipment verification
Included Accessories
- Fluke 9172-C-156 Metrology Well, Insert C
- Power Cord
- RS-232 Cable
- Tongs (insert removal tool)
- 9930 Interface-it Software and User's Guide
- Getting Started Guide
- User's Guide
- Report of Calibration and calibration label
Specifications
| Series | 9170 Series |
