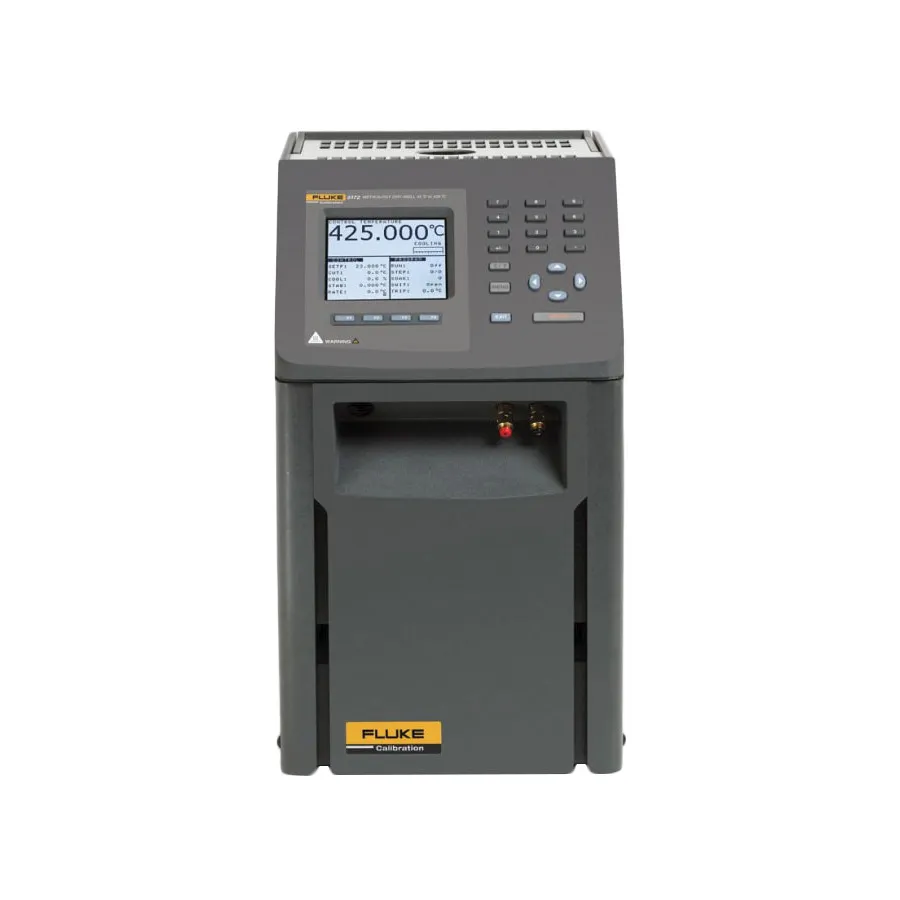

Fluke 9172-B-R-156 Metrology Well

Overview

The Fluke 9172-B-R-156 is a precision dry block metrology well with integrated reference thermometry for complete temperature calibration. It provides stable, accurate temperatures from 35°C to 425°C with display accuracy of ±0.2°C at 425°C and exceptional stability of ±0.005°C to ±0.01°C. The integrated Tweener measurement technology eliminates the need for separate external reference thermometers, accommodating 100-, 25-, and 10-ohm PRTs with integrated reference accuracy from ±0.006°C at 0°C to ±0.027°C at 661°C.

Key Features

• Temperature range: 35°C to 425°C (95°F to 797°F)
• Display accuracy: ±0.1°C at 100°C, ±0.15°C at 225°C, ±0.2°C at 425°C
• Stability: ±0.005°C to 100°C, ±0.008°C to 225°C, ±0.01°C to 425°C
• Axial uniformity (60 mm): ±0.05°C at 100°C, ±0.1°C at 225°C, ±0.2°C at 425°C
• Radial uniformity: ±0.01°C at 100°C, ±0.02°C at 225°C, ±0.025°C at 425°C
• Well depth: 203 mm (8 in)
• Resolution: 0.001°C
• LCD display with selectable °C or °F
• RS-232 serial interface with 5-pin DIN connector for reference input
• Eight temperature set points with ramp and soak times
• Automated switch test protocol
• Integrated Tweener Reference: ±0.006°C at 0°C to ±0.027°C at 661°C; supports 100-, 25-, and 10-ohm PRTs
• Insert B (Brass): Comparison holes 3/16 in (×2), 1/4 in (×2), 3/8 in (×2)

Applications

• Calibration of RTDs, thermocouples, and thermistors with integrated reference standard
• Laboratory temperature measurement standards and reference calibrators
• Field calibration with built-in reference verification

9170 Series Metrology Wells

The Fluke Hart Metrology Wells serve as stable heat sources for laboratory and field use with calibrated displays. These wells feature interchangeable probe sleeves accommodating probes of varying diameters and use PRT (Platinum Resistance Thermometer) sensors with thermoelectric modules or heaters. The series includes four models:

• 9170: Range −45°C to 140°C with 160 mm (6.3 in) immersion depth
• 9171: Range −30°C to 155°C with 203 mm (8 in) immersion depth
• 9172: Range 35°C to 425°C with 203 mm (8 in) immersion depth
• 9173: Range 50°C to 700°C with 203 mm (8 in) immersion depth

Included Accessories

• Fluke 9172-B-R-156 Metrology Well with Insert B
• Power cord
• RS-232 cable
• Getting started guide
• User's guide
• Report of calibration and calibration label
• Tongs (insert removal tool)
• 9930 Interface-it software and user's guide
