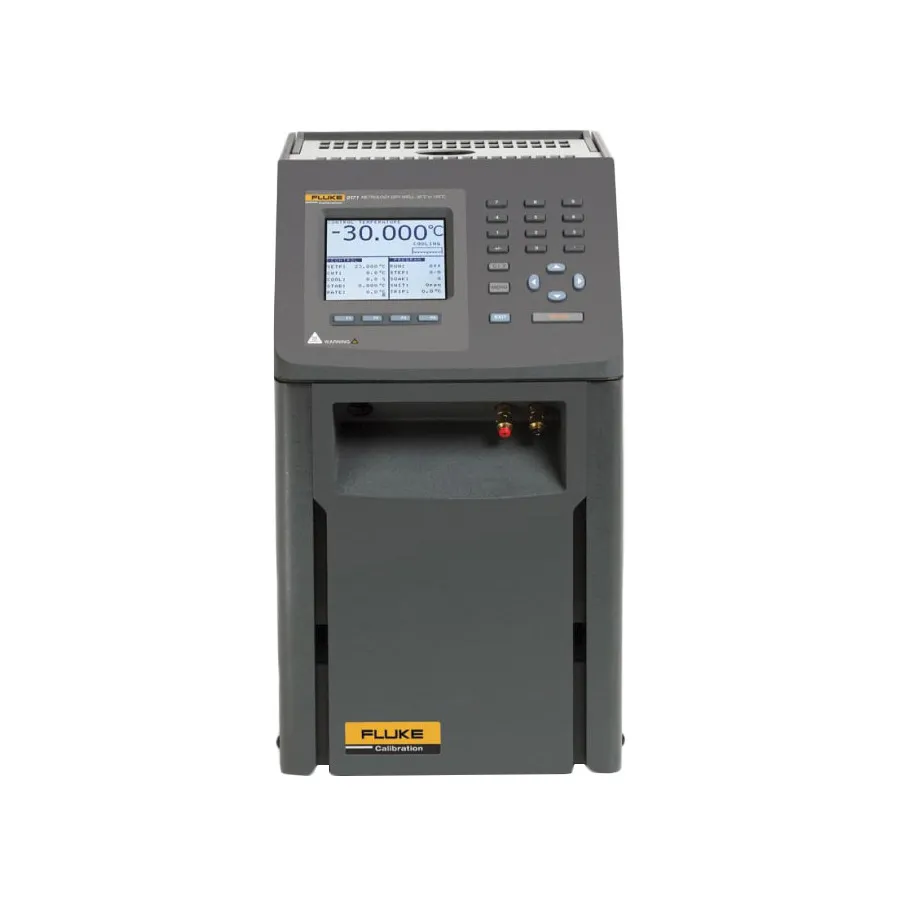

Fluke 9171-F-156 Metrology Well
Request a quote
Fluke 9171-F-156 is a precision metrology well for temperature calibration with 203 mm immersion depth, -30°C to 155°C range, ±0.005°C stability, and ±0.1°C accuracy.
Product details
| Model | 9171-F-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9171-F-156 is a precision dry-block metrology well designed for laboratory and field temperature calibration. It features 203 mm (8 in) of immersion depth and operates over a wide range from -30°C to 155°C with exceptional stability and uniformity characteristics. The 9171 minimizes temperature gradients, loading effects, and hysteresis, making it suitable for calibrating RTDs, thermocouples, and thermistors with traceable, accredited measurements.
Key Features
- Temperature Range: -30°C to 155°C (-22°F to 311°F)
- Display Accuracy: ±0.1°C full range
- Stability: ±0.005°C full range
- Axial Uniformity: ±0.025°C at -30°C, ±0.02°C at 0°C, ±0.07°C at 155°C
- Radial Uniformity: ±0.01°C full range
- Well Depth: 203 mm (8 in)
- Resolution: 0.001°C
- LCD Display with C/F selection
- RS-232 Serial Interface
- 8 Temperature Set Points with ramp and soak timing
- Automated switch test protocol
- Insert F: Aluminum with metric comparison holes (3mm x2, 4mm x2, 6mm)
Applications
- RTD (Platinum Resistance Thermometer) calibration
- Thermocouple calibration and validation
- Thermistor testing and calibration
- Temperature measurement equipment verification
Included Accessories
- Insert F (Aluminum)
- Power Cord
- RS-232 Cable
- Tongs (insert removal tool)
- 9930 Interface-it Software and User's Guide
- Getting Started Guide
- User's Guide
- Report of Calibration with calibration label
Specifications
| Series | 9170 Series |
