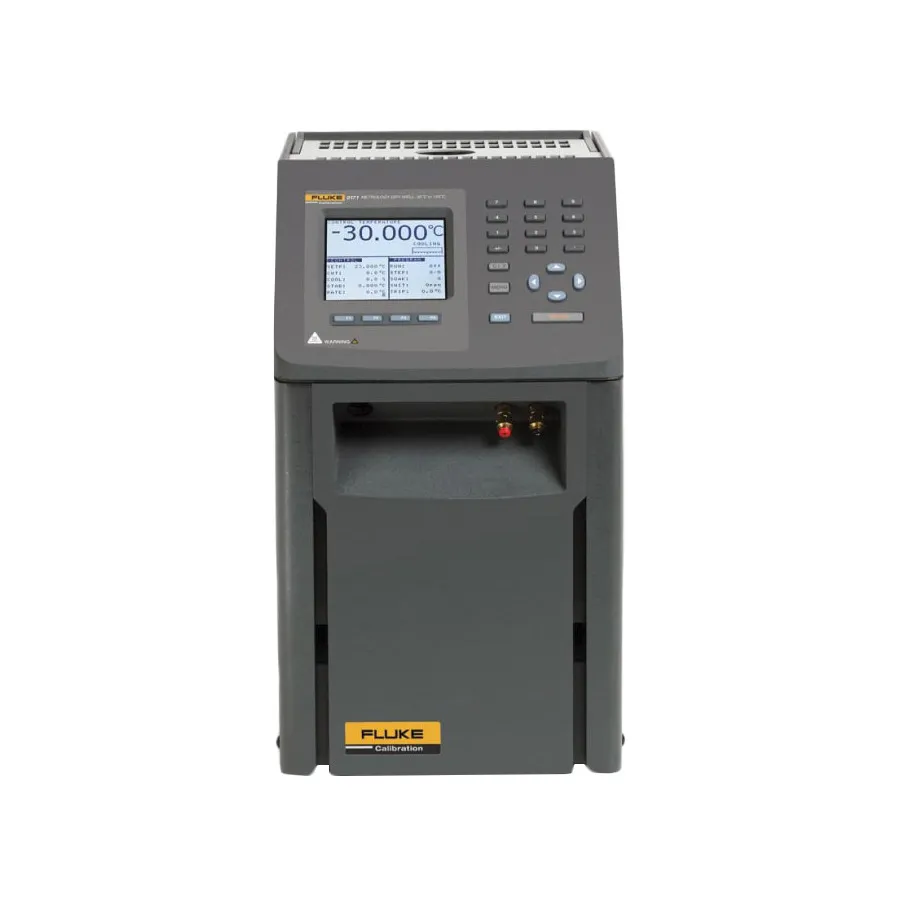

Fluke 9171-E-R-156 Metrology Well

Overview

The Fluke 9171-E-R-156 is a precision dry-well calibrator designed for high-accuracy temperature measurement and sensor calibration. Offering 203 mm (8 in) of immersion depth and operating from -30°C to 155°C, it provides display accuracy of ±0.1°C and exceptional full-range stability of ±0.005°C. The -R variant integrates built-in reference thermometry using Fluke's Tweener technology, enabling independent PRT measurement while Insert E accommodates metric probe sizes.

Key Features

• Temperature range: -30°C to 155°C
• Display accuracy: ±0.1°C full range
• Stability: ±0.005°C full range
• Well depth: 203 mm (8 in)
• Resolution: 0.001°C
• Axial uniformity: ±0.025°C at -30°C, ±0.02°C at 0°C, ±0.07°C at 155°C
• Radial uniformity: ±0.01°C full range
• Insert E: Metric probe holes (3, 4, 6, 8, 10 mm) with 0.25-inch reference hole
• Built-in reference thermometry for 100-, 25-, and 10-ohm PRTs
• Accommodates ITS-90 characterization coefficients for reference thermometers
• LCD display with °C/°F selection
• RS-232 serial interface
• 8 temperature set points with ramp and soak times
• Automated switch test protocol

Applications

• RTD (Platinum Resistance Thermometer) calibration and verification
• Thermocouple calibration and testing
• Thermistor measurement and validation
• Temperature sensor calibration in metrology labs
• Field calibration and verification of temperature instruments

Included Accessories

• Insert E with metric probe holes
• Power cord
• RS-232 cable
• 9930 Interface-it Software and user's guide
• Getting started guide and user's guide
• Report of calibration with calibration label
• Tongs (insert removal tool)
