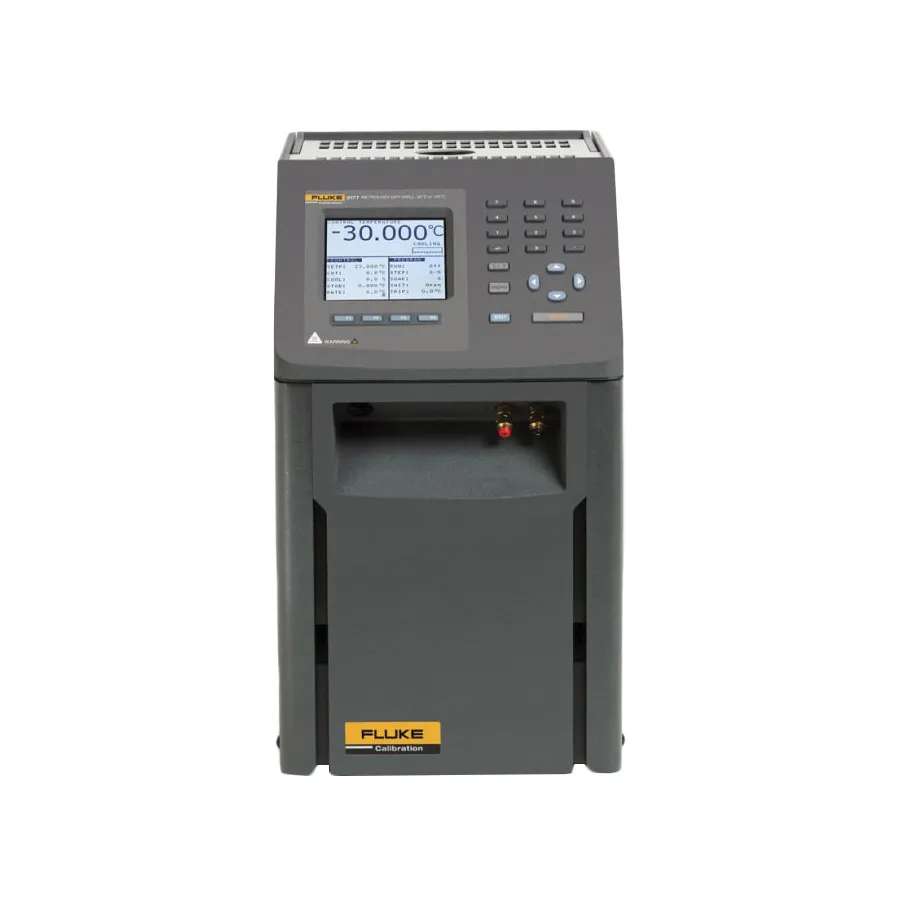

Fluke 9171-E-156 Metrology Well
Request a quote
Fluke 9171-E-156 dry-well calibrator with -30 to 155°C range, ±0.1°C accuracy, ±0.005°C stability, Insert E for metric probe holes.
Product details
| Model | 9171-E-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9171 with Insert E is a precision dry-well calibrator providing 203 mm (8 in) of immersion depth for temperature measurement and sensor calibration from -30°C to 155°C. It features exceptional axial and radial uniformity with full-range stability of ±0.005°C. Insert E accommodates metric probe diameters, making it ideal for labs working with standard metric test equipment.
Key Features
- Temperature range: -30°C to 155°C
- Display accuracy: ±0.1°C full range
- Stability: ±0.005°C full range
- Well depth: 203 mm (8 in)
- Resolution: 0.001°C
- Axial uniformity: ±0.025°C at -30°C, ±0.02°C at 0°C, ±0.07°C at 155°C
- Radial uniformity: ±0.01°C full range
- Insert E: Metric probe holes (3, 4, 6, 8, 10 mm) with 0.25-inch reference hole
- LCD display with °C/°F selection
- RS-232 serial interface
- 8 temperature set points with ramp and soak times
- Automated switch test protocol
Applications
- RTD (Platinum Resistance Thermometer) calibration
- Thermocouple calibration and verification
- Thermistor measurement and testing
- Temperature sensor validation in calibration labs
- Field calibration of temperature measurement instruments
Included Accessories
- Insert E with metric probe holes
- Power cord
- RS-232 cable
- 9930 Interface-it Software and user's guide
- Getting started guide and user's guide
- Report of calibration with calibration label
- Tongs (insert removal tool)
Specifications
| Series | 9170 Series |
