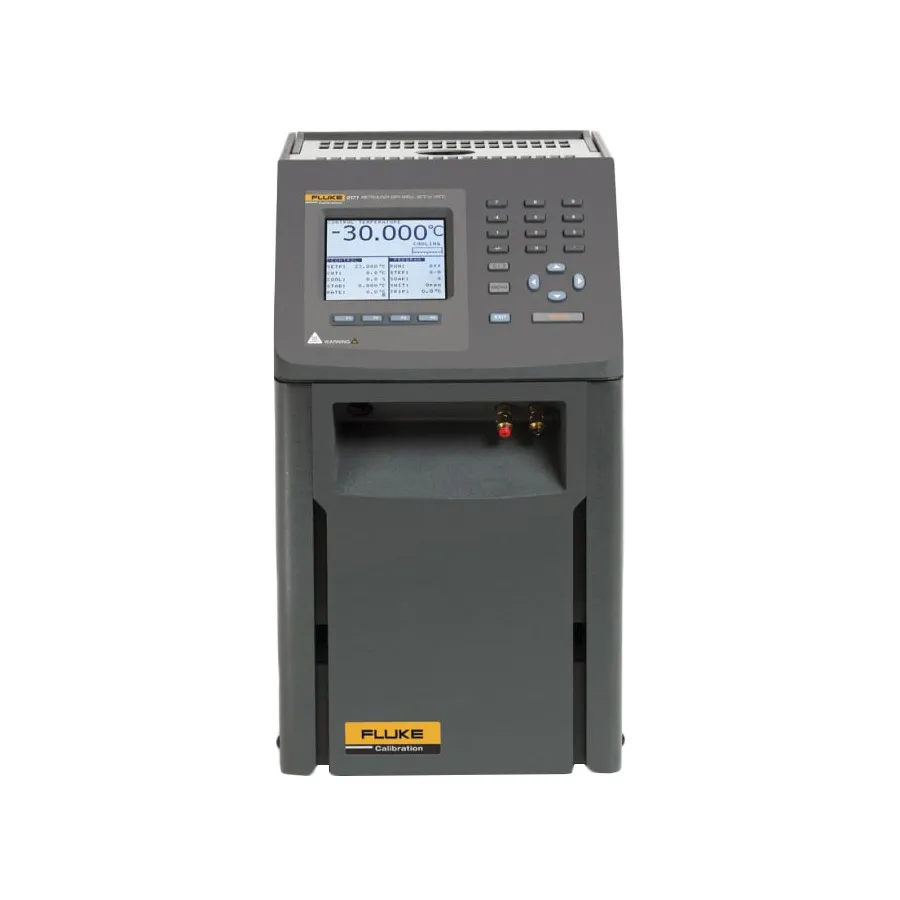

Fluke 9171-DW-R-156 Metrology Well
Request a quote
Fluke 9171-DW-R-156 dry-well calibrator with -30 to 155°C range, ±0.1°C accuracy, ±0.005°C stability, 203mm immersion, built-in reference input.
Product details
| Model | 9171-DW-R-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9171 dry-well calibrator provides 203 mm (8 in) of immersion depth for precision temperature calibration over the range -30°C to 155°C. It delivers exceptional uniformity and stability (±0.005°C full range), minimizing temperature gradients and loading effects to ensure meaningful calibration results. The -R variant integrates Fluke's Tweener reference thermometry technology, accommodating 100-, 25-, and 10-ohm PRTs for accurate, traceable measurements without external equipment.
Key Features
- Temperature range: -30°C to 155°C
- Display accuracy: ±0.1°C full range
- Stability: ±0.005°C full range
- Well depth: 203 mm (8 in)
- Resolution: 0.001°C
- Axial uniformity: ±0.025°C at -30°C, ±0.02°C at 0°C, ±0.07°C at 155°C
- Radial uniformity: ±0.01°C full range
- Built-in reference thermometry for PRT inputs with ITS-90 support
- LCD display with °C/°F selection
- RS-232 serial interface
- 8 temperature set points with ramp and soak times
- Automated switch test protocol
Applications
- RTD (Platinum Resistance Thermometer) calibration and verification
- Thermocouple testing and calibration
- Thermistor measurement and validation
- Temperature sensor calibration in metrology labs
- Field calibration of temperature instruments
Included Accessories
- Power cord
- RS-232 cable
- 9930 Interface-it Software and user's guide
- Getting started guide and user's guide
- Report of calibration with calibration label
- Tongs (insert removal tool)
Specifications
| Series | 9170 Series |
