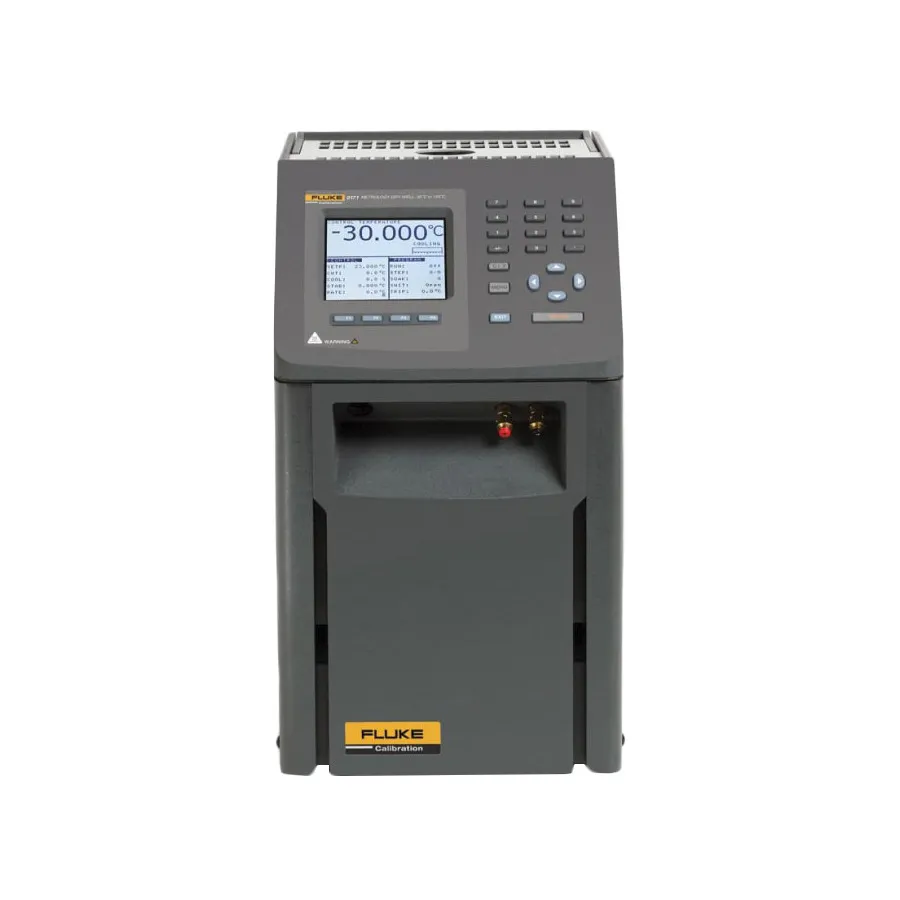

Fluke 9171-B-R-156 Metrology Well

Overview

The Fluke 9171-B-R-156 is a precision dry-block metrology well with an integrated built-in reference thermometer input. It provides 203 mm (8 inches) of immersion depth with temperature range from -30°C to 155°C and exceptional stability of ±0.005°C across the full range. The built-in reference input can accommodate 100-, 25-, and 10-ohm PRTs and accurately reads thermometer probes from ±0.006°C at 0°C to ±0.027°C at 661°C, making it suitable for use as a reference standard.

Key Features

• Temperature range: -30°C to 155°C (-22°F to 311°F)
• Display accuracy: ±0.1°C full range
• Stability: ±0.005°C full range
• Immersion depth: 203 mm (8 inches)
• Resolution: 0.001°C
• Axial uniformity: ±0.025°C at -30°C, ±0.02°C at 0°C, ±0.07°C at 155°C
• Radial uniformity: ±0.01°C full range
• Built-in reference thermometer input with Tweener measurement technology
• Supports 100, 25, and 10-ohm PRTs with ITS-90 coefficients
• Reference accuracy: ±0.006°C at 0°C to ±0.027°C at 661°C
• LCD display with selectable Celsius or Fahrenheit
• RS-232 serial interface
• Eight temperature set points with programmable ramp and soak times
• Automated switch test protocol
• Insert B with 3/16", 1/4", and 3/8" comparison holes

Applications

• RTD (Resistance Temperature Detector) calibration with reference measurement
• Thermocouple calibration
• Thermistor calibration
• Temperature reference standard
• Precision laboratory metrology
• Field and laboratory calibration

Included Accessories

• Power cord
• RS-232 cable
• Insert removal tool (tongs)
• 9930 Interface-it software and user's guide
• Getting started guide
• User's guide
• Report of calibration with calibration label
