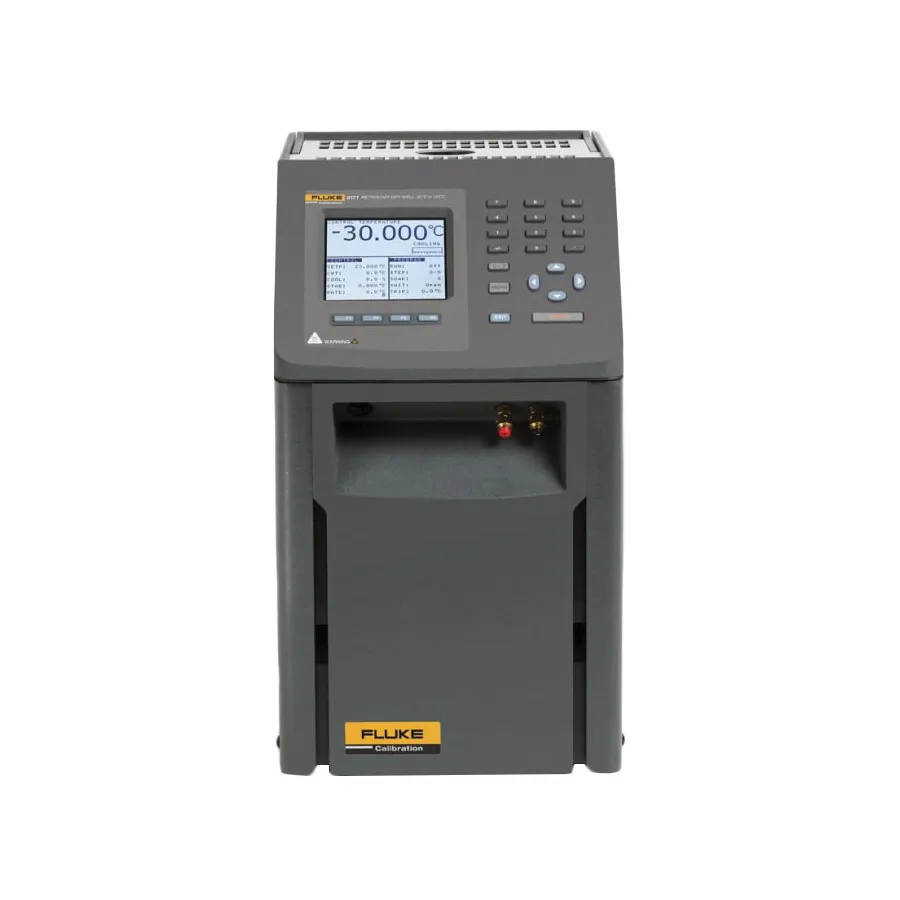

Fluke 9171-B-156 Metrology Well
Request a quote
Fluke 9171-B-156 dry-block metrology well with 203 mm immersion depth, ±0.1°C display accuracy, and -30°C to 155°C range for temperature calibration.
Product details
| Model | 9171-B-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9171-B-156 is a precision dry-block metrology well designed for laboratory and field temperature calibration. It provides 203 mm (8 inches) of immersion depth with temperature range from -30°C to 155°C and exceptional stability of ±0.005°C across the full range. The display is calibrated to ±0.1°C accuracy, and the design minimizes temperature gradients, loading effects, and hysteresis, ensuring meaningful calibration results.
Key Features
- Temperature range: -30°C to 155°C (-22°F to 311°F)
- Display accuracy: ±0.1°C full range
- Stability: ±0.005°C full range
- Immersion depth: 203 mm (8 inches)
- Resolution: 0.001°C
- Axial uniformity: ±0.025°C at -30°C, ±0.02°C at 0°C, ±0.07°C at 155°C
- Radial uniformity: ±0.01°C full range
- LCD display with selectable Celsius or Fahrenheit
- RS-232 serial interface for automated control
- Eight temperature set points with programmable ramp and soak times
- Automated switch test protocol
- Insert B with 3/16", 1/4", and 3/8" comparison holes
Applications
- RTD (Resistance Temperature Detector) calibration
- Thermocouple calibration
- Thermistor calibration
- Temperature sensor verification and testing
- Field and laboratory metrology
Included Accessories
- Power cord
- RS-232 cable
- Insert removal tool (tongs)
- 9930 Interface-it software and user's guide
- Getting started guide
- User's guide
- Report of calibration with calibration label
Specifications
| Series | 9170 Series |
