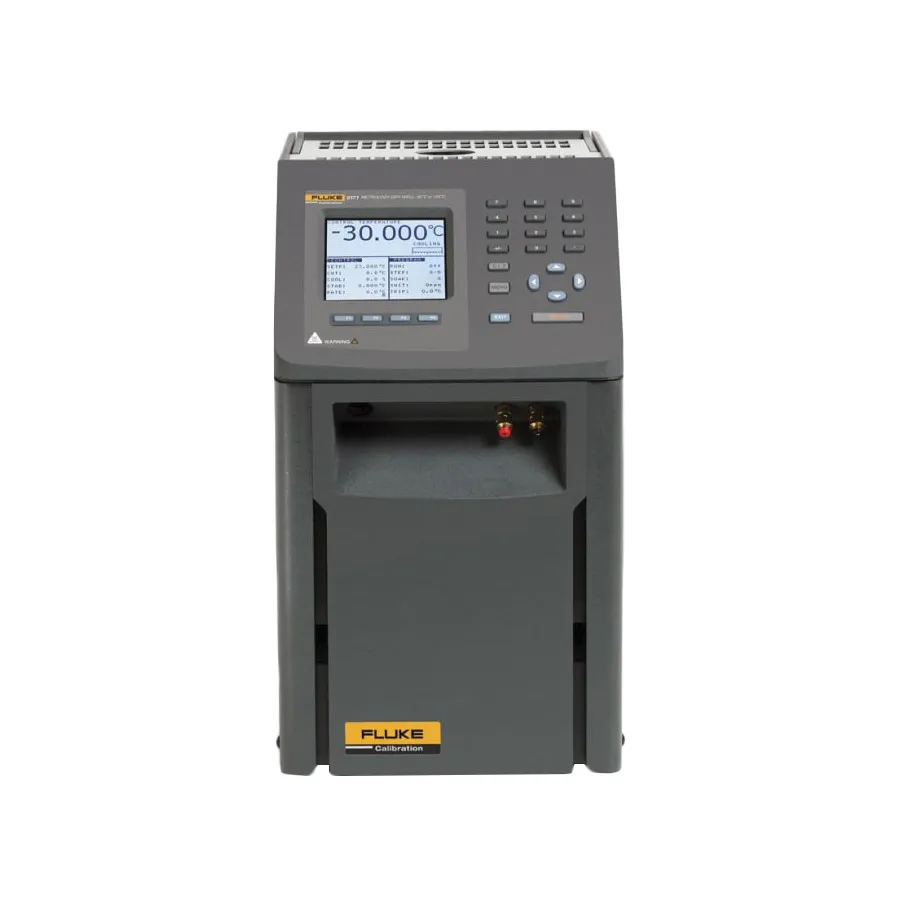

Fluke 9171-A-R-156 Metrology Well

Overview

The Fluke 9171-A-R-156 is a precision metrology well with built-in reference thermometer input for advanced temperature calibration and measurement. It combines Fluke's renowned stability and uniformity with optional ITS-90 compatible reference input, enabling direct PRT reading for traceability certification.

Key Features

• Temperature range from -30°C to 155°C with ±0.1°C display accuracy
• Outstanding stability of ±0.005°C across full operating range
• Axial uniformity of ±0.02°C to ±0.07°C within 60 mm zone
• Radial uniformity of ±0.01°C full range between wells
• Immersion depth of 203 mm (8 inches)
• Built-in reference thermometer input for 100Ω, 25Ω, and 10Ω PRTs
• Reference input accuracy to ±0.006°C at 0°C with ITS-90 characterization
• Resolution of 0.001°C on display
• LCD display with Celsius or Fahrenheit selection
• RS-232 serial interface with 9930 Interface-it Software included
• Eight programmable temperature set points with ramp and soak capabilities
• Automated switch test protocol for thermal switch characterization
• Traceable NIST calibration with accreditation

Applications

• Precision temperature sensor and RTD calibration with reference traceability
• Thermocouple calibration and characterization
• Reference standard for temperature measurement equipment
• Thermal switch testing and protocol development
• Laboratory and field calibration work

Included Accessories

• 9171-A-R-156 Metrology Well with Insert A
• Power Cord
• RS-232 Cable
• Getting Started Guide
• User's Guide
• Report of Calibration with calibration label
• Tongs (insert removal tool)
• 9930 Interface-it Software and User's Guide
