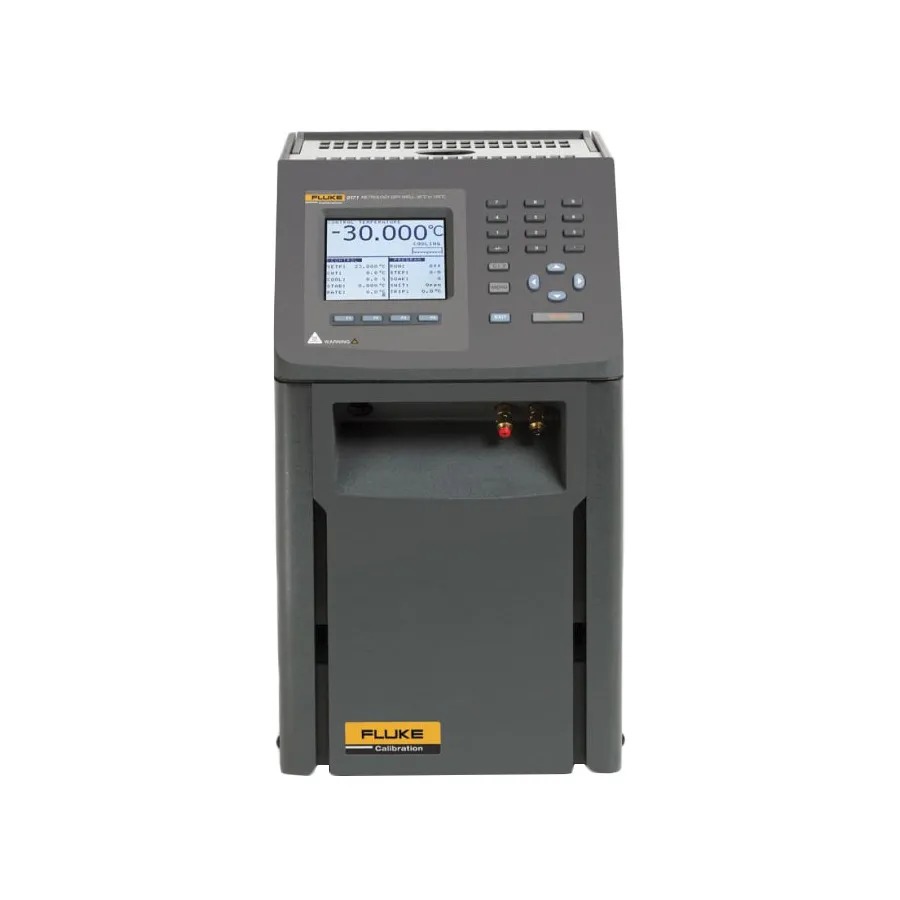

Fluke 9171-A-156 Metrology Well
Request a quote
Fluke 9171-A-156 metrology well with -30°C to 155°C range, ±0.1°C accuracy, and ±0.005°C stability for precision temperature sensor calibration.
Product details
| Model | 9171-A-156 |
| Manufacturer | Fluke |
| Category | Calibration Instruments |
| Availability | Made to order |
Description
Overview
The Fluke 9171-A-156 is a precision metrology well that serves as a reliable heat source for temperature calibration in both laboratory and field settings. This dry-block calibrator features exceptionally uniform temperature distribution and traceable NIST calibration, making it suitable for calibrating temperature sensors and devices across its operating range.
Key Features
- Temperature range from –30°C to 155°C (–22°F to 311°F)
- Display accuracy of ±0.1°C across full range
- Outstanding stability of ±0.005°C full range
- Immersion depth to 203 mm (8 in)
- LCD display selectable for Celsius or Fahrenheit
- 4-wire probe connection with 5-pin DIN connector
- RS-232 interface for computer connectivity
- Optional built-in reference input for external PRTs (±0.006°C accuracy)
- NIST traceable calibration with NVLAP accreditation
- Interchangeable probe sleeves for various probe diameters
Applications
- Temperature sensor and RTD calibration
- Thermocouple calibration and verification
- Laboratory and field temperature calibration
- Reference standard for temperature measurement devices
Included Accessories
- 9171 Metrology Well with Insert A
- Power Cord
- RS-232 Cable
- Well Insulator
- Tongs (insert removal tool)
- Getting Started Guide and User's Guide
- Report of Calibration with calibration label
Specifications
| Series | 917X Series |
