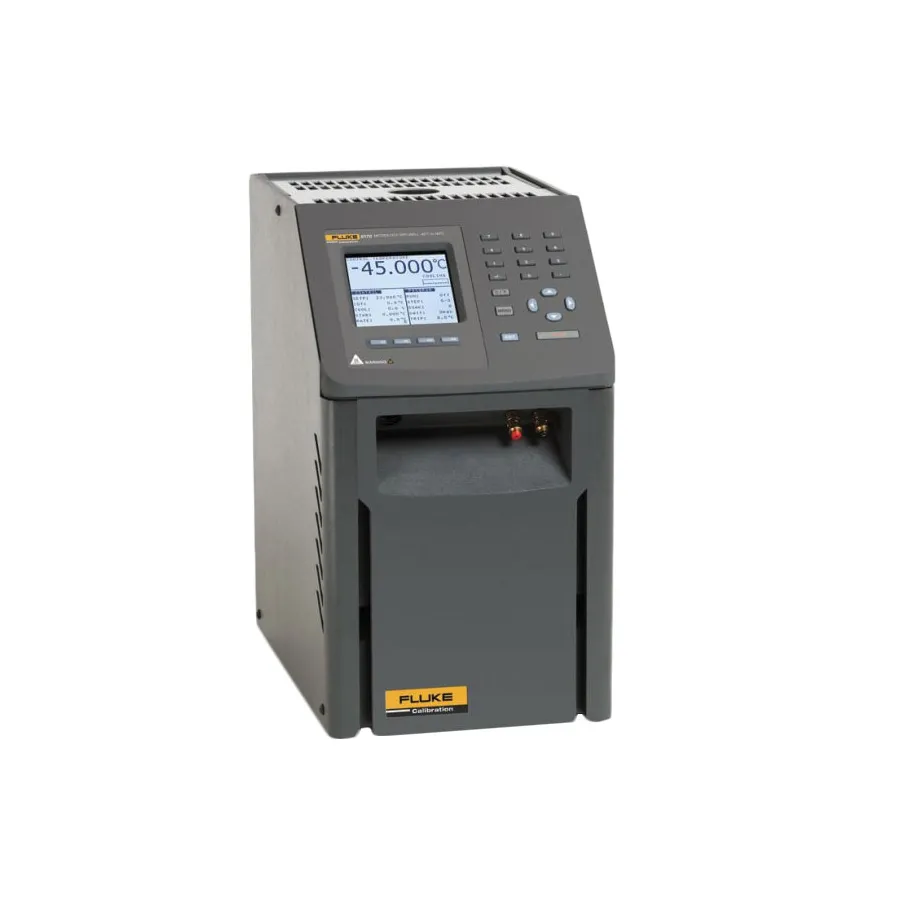

Fluke 9170-E-156 Metrology Well

Overview

The Fluke 9170-E-156 is a precision metrology well designed for accurate temperature calibration of sensors and instruments. This model features a temperature range from -45°C to 140°C with exceptional stability and uniformity, making it suitable for laboratory and field calibration applications. The 160 mm immersion depth and Insert E configuration accommodate a variety of probe diameters.

Key Features

• Temperature range: -45°C to 140°C (-49°F to 284°F)
• Display accuracy: ±0.1°C full range
• Stability: ±0.005°C full range
• Axial uniformity: ±0.1°C at -45°C, ±0.04°C at -35°C, ±0.02°C at 0°C, ±0.07°C at 140°C
• Radial uniformity: ±0.01°C full range
• Well depth: 160 mm (6.3 in)
• Resolution: 0.001°C
• Display: LCD, °C or °F user-selectable
• RS-232 serial interface
• 8 temperature setpoints with ramp and soak times
• Automated switch test protocol

Insert E Specifications

Aluminium construction with metric holes: 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, and 0.25-inch reference hole.

Applications

• Calibration of RTDs, thermocouples, and thermistors
• Pharmaceutical temperature validation
• Laboratory and field metrology work

Included Accessories

• Fluke 9170-E-156 Metrology Well with Insert E
• Power cord
• RS-232 cable
• Getting started guide
• User's guide
• Report of calibration and calibration label
• Tongs (insert removal tool)
• 9930 Interface-it Software and user's guide
